Product Range

Ventilated perforated trays roll-formed from pre-galvanized, hot-dip galvanized, stainless steel or aluminum sheet. Widths 50–1200 mm, heights 50/75/100/150/200 mm, lengths 2000–6000 mm. Complete fitting program in the same series: horizontal elbows 30°/45°/60°/90°, vertical elbows (inside / outside), tees, crosses, reducers, end caps and internal dividers. Custom hole patterns and finishes (powder coating, FRP) available on request.

Full Perforated Cable Tray specification, sizes & pricing →

Straight SectionW 50–1200 · L 2000–6000 mm

Perforated TraySide-rail ventilation design

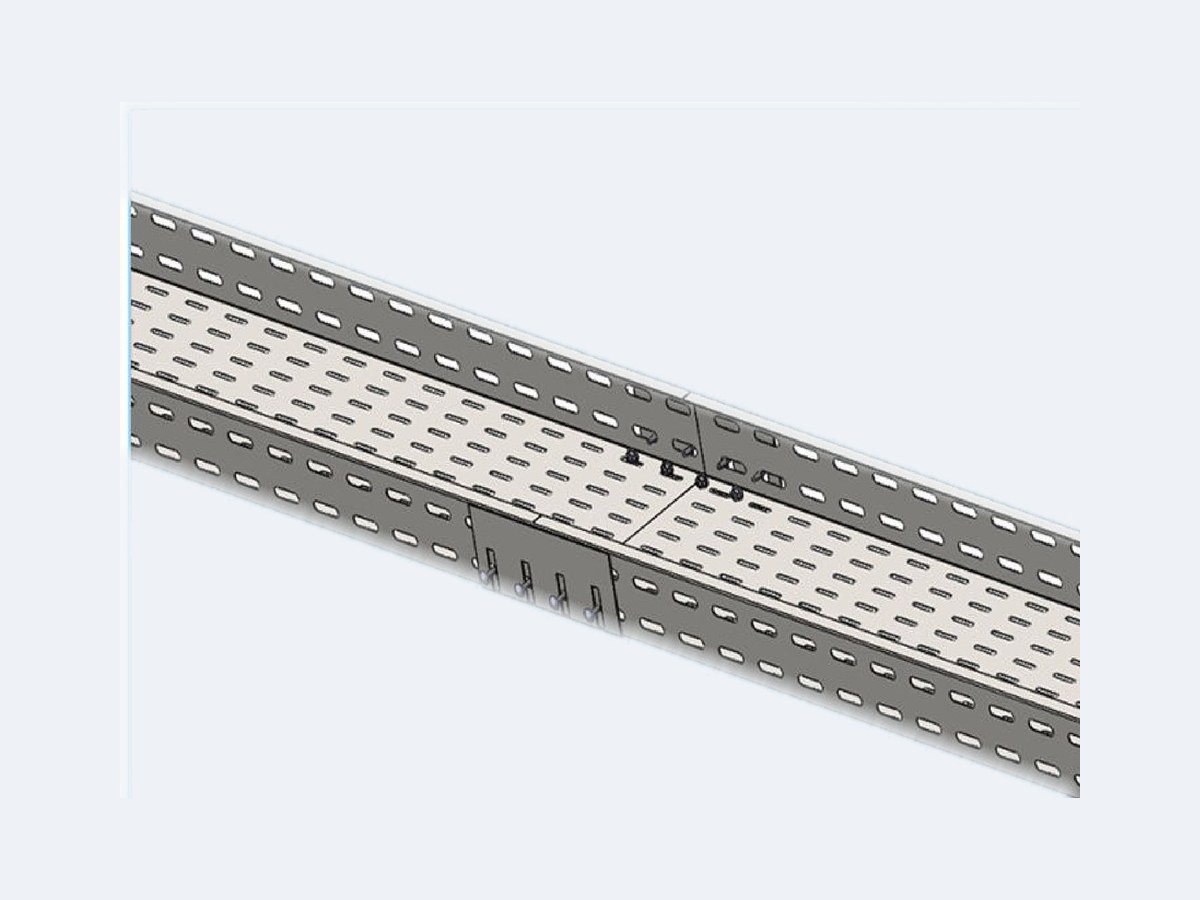

Splice-Jointed TrayQuick coupler connection

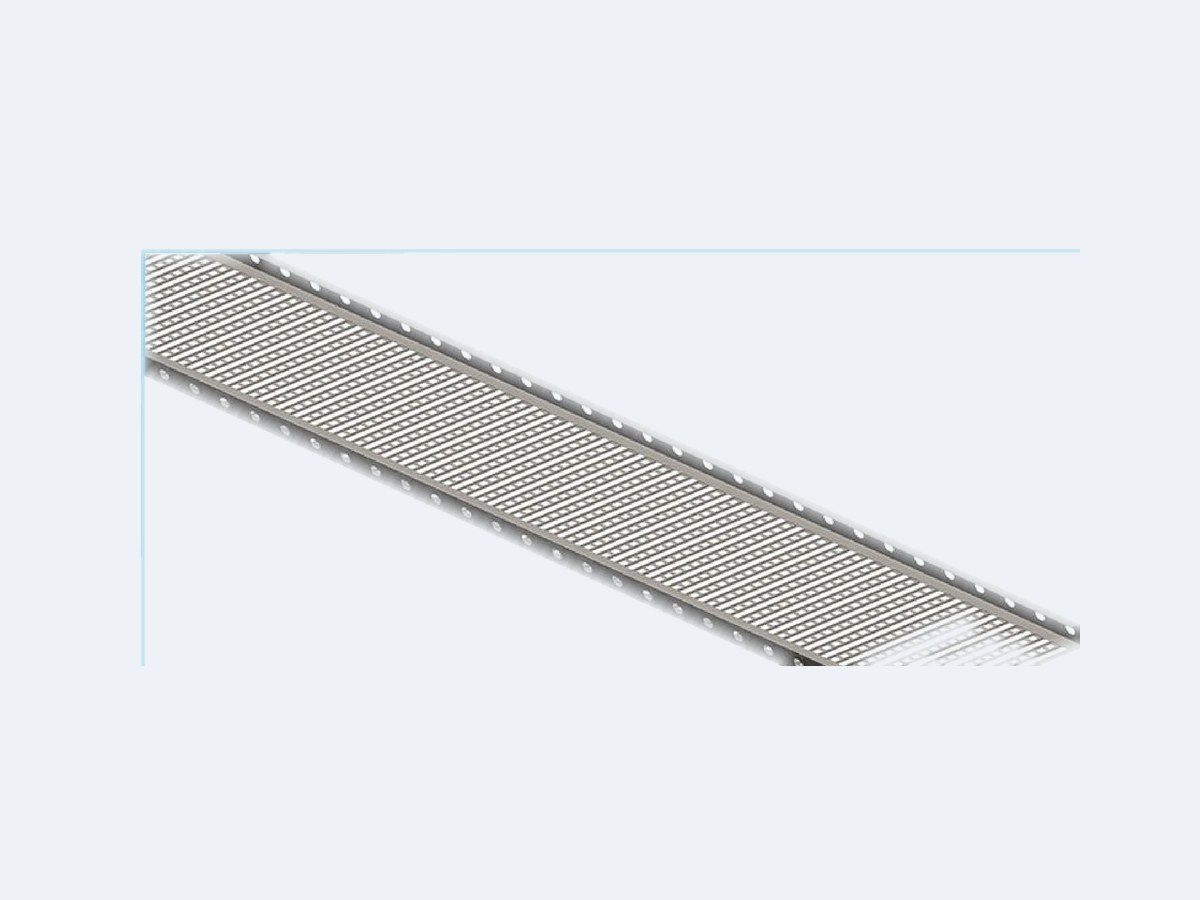

Wide-Body TrayW 400–1200 mm

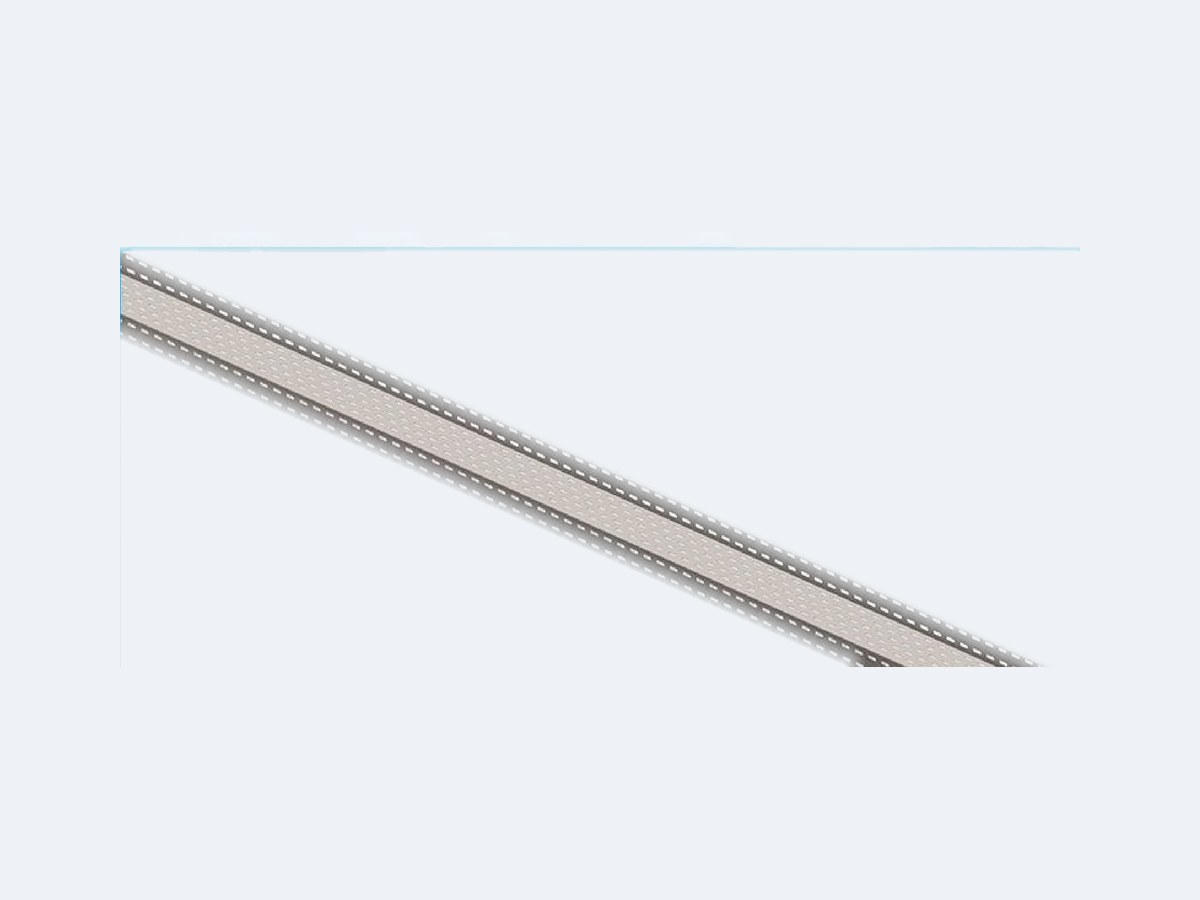

Standard Duty TrayW 50–300 mm

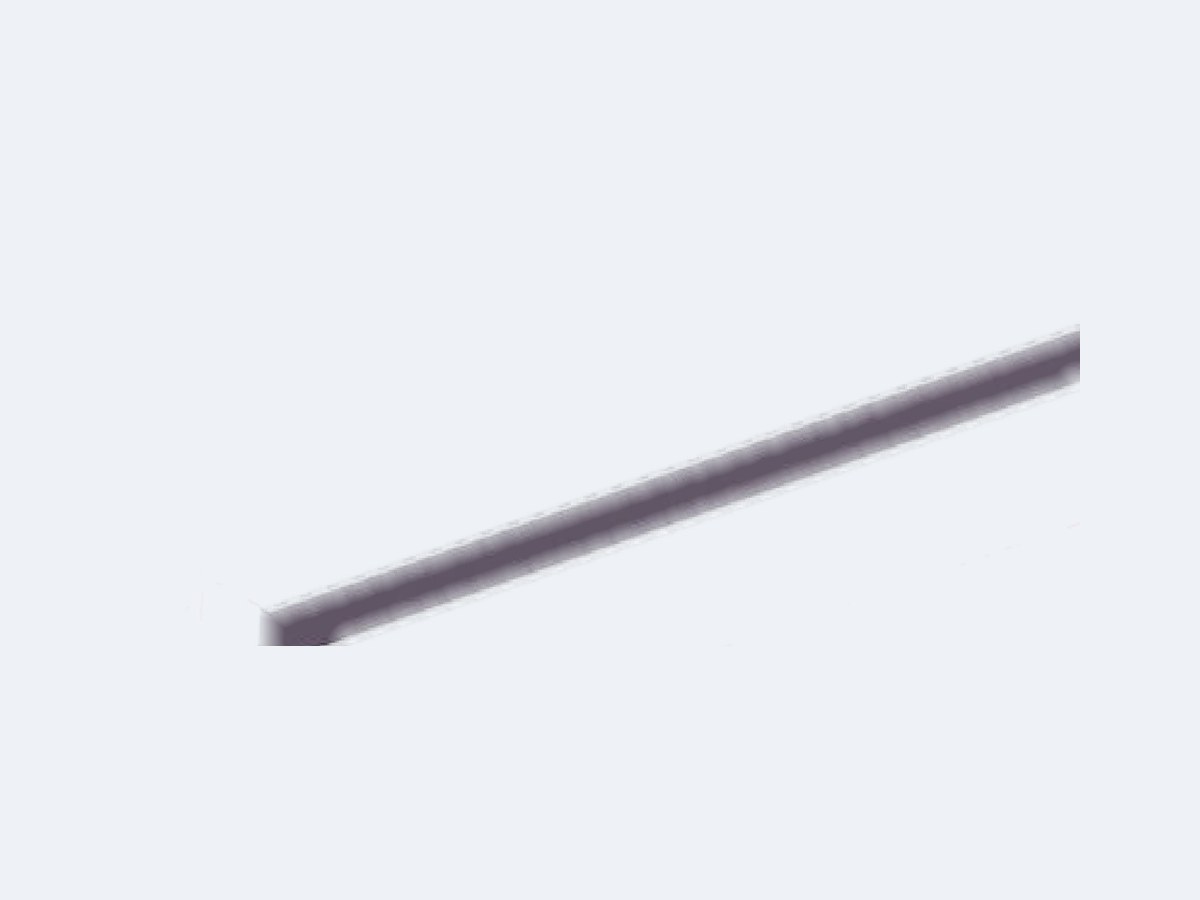

Divider StripSplit tray into cable channels

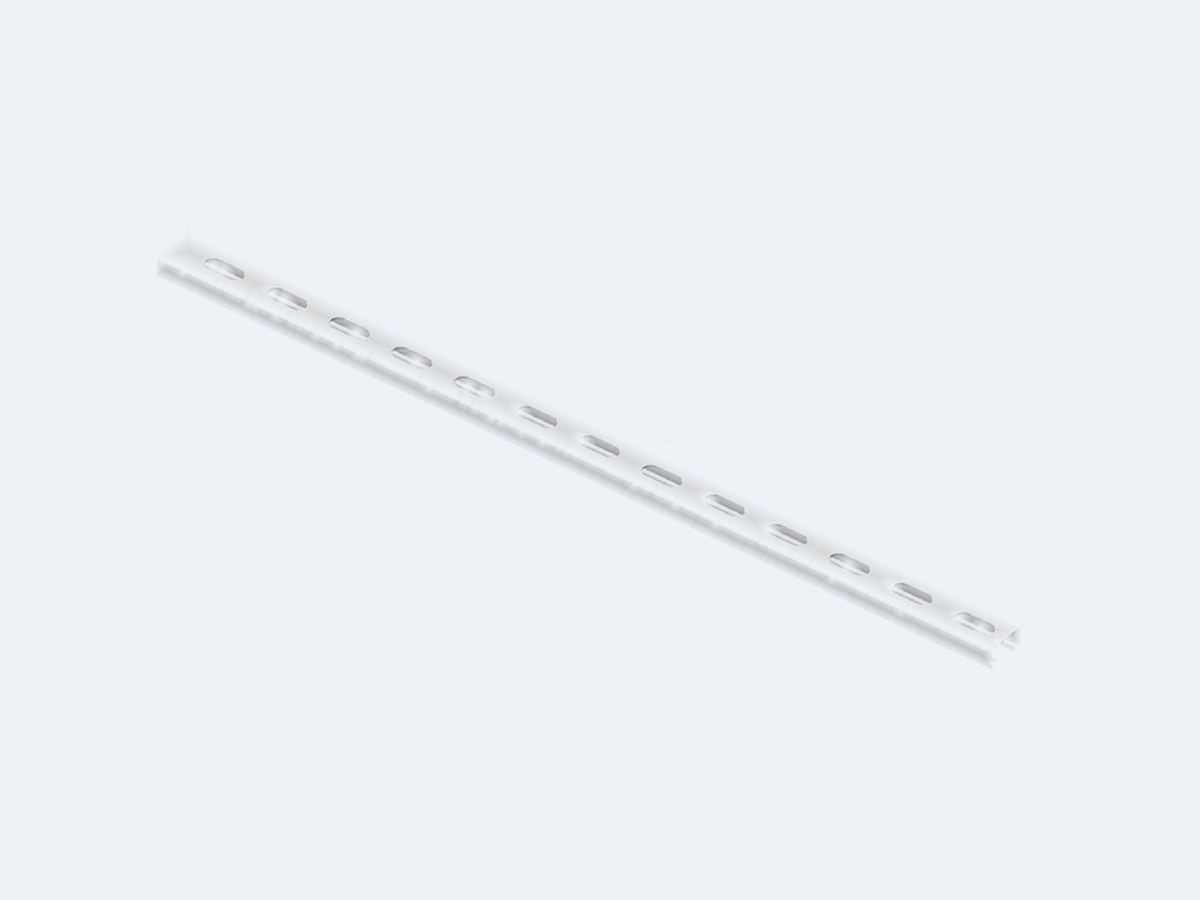

Straight BracketTrapeze / U-type support, L 110–440 mm

Heavy-duty ladder racks for power distribution, metro, tunnel and industrial projects. C-rail side profiles with adjustable rung spacing (250/300 mm); optional solid covers for outdoor or falling-object protection. Splice-jointed or welded straight couplers, expansion joints, horizontal & vertical elbows and riser fittings available. Safe working loads tested per span.

Full Ladder Cable Tray specification, sizes & pricing →

Ladder StraightPre-GI / HDG / SS304 / SS316

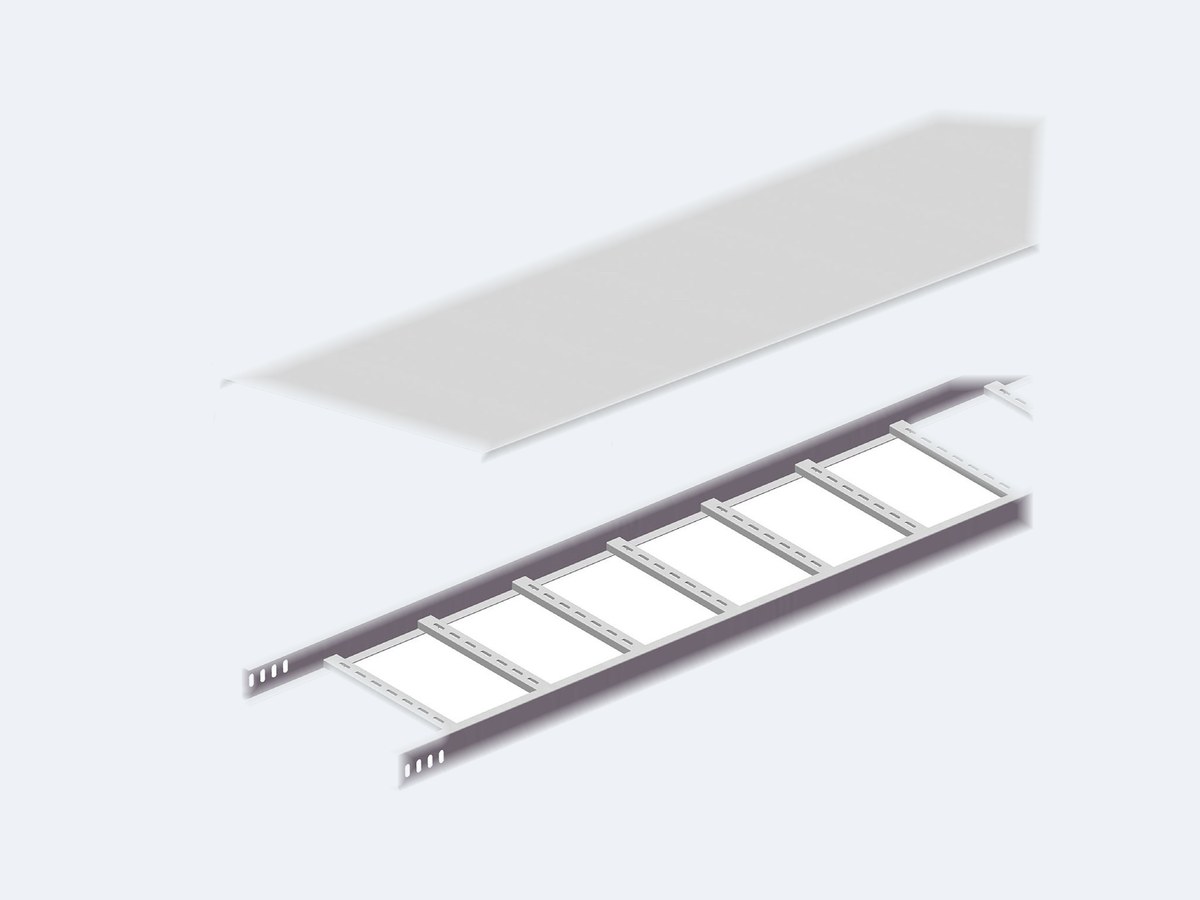

Ladder with Solid CoverW 50–1200 · L 2000–6000 mm

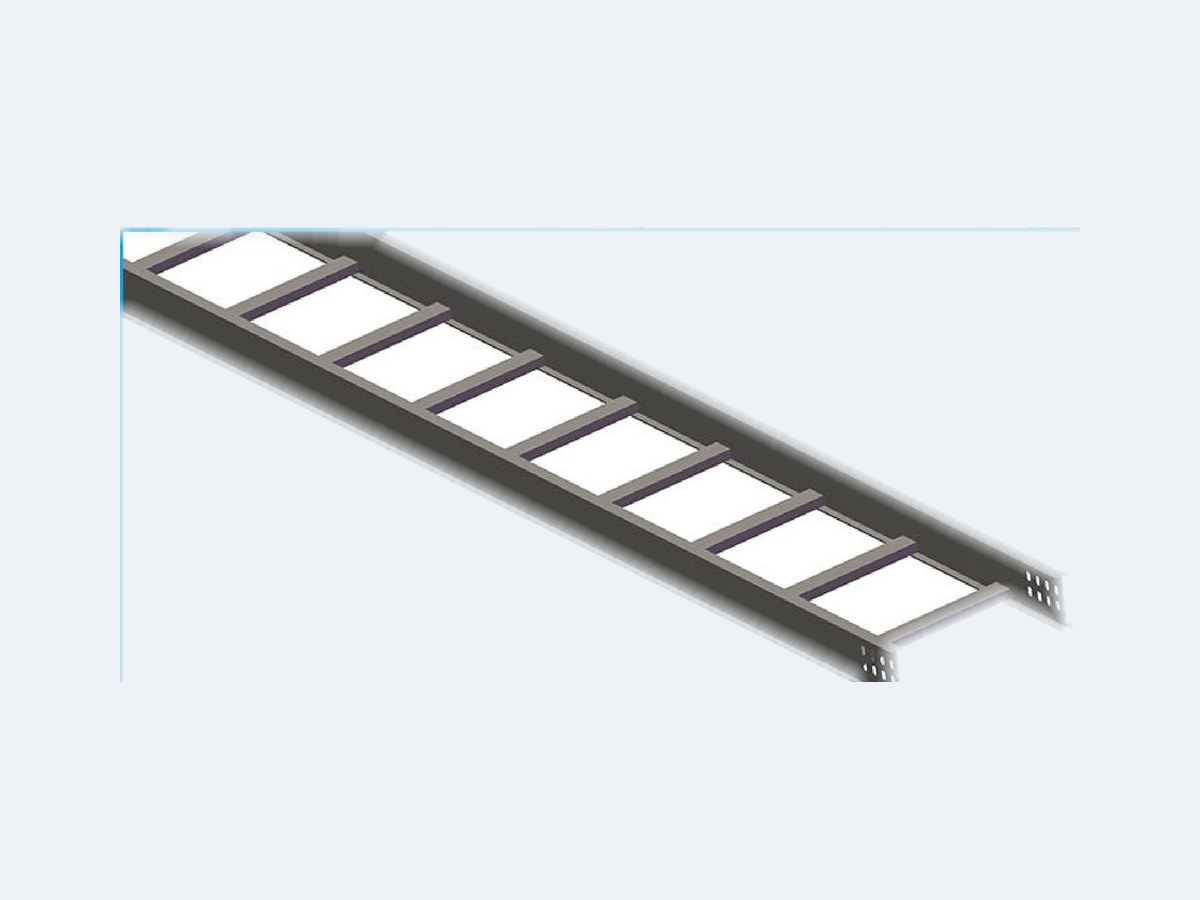

Powder-Coated LadderAny RAL color

Electro-welded 5 mm wire baskets — the fastest tray system to install for data centers, offices and retail projects. Side-flange design allows accessories to clip on without drilling — swivel plates, cable clamps and cover strips available. Zinc-plated, HDG or stainless steel.

Full Wire Mesh Cable Tray specification, sizes & pricing →

Straight BasketW 100–800 · H 50–150 mm

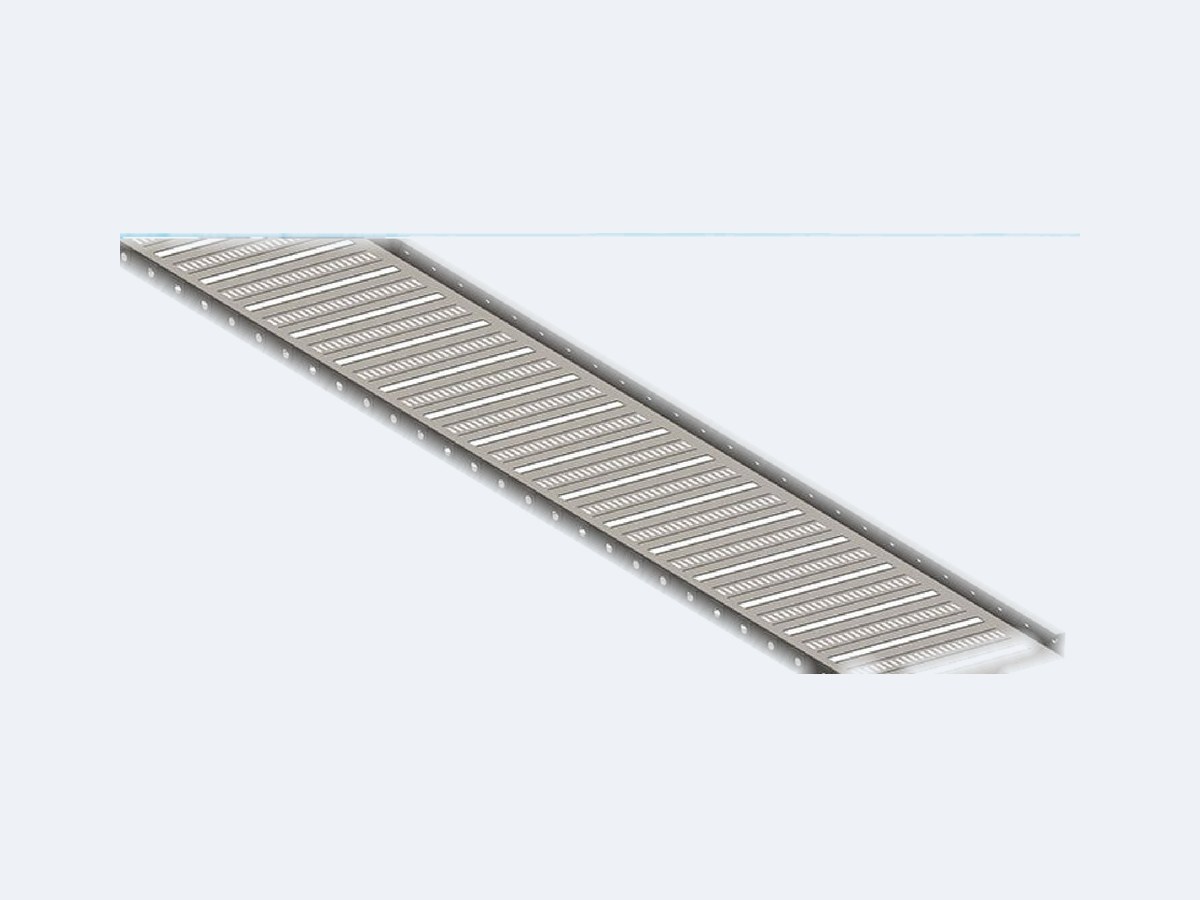

Mesh TrayØ5 mm wire · L 3000 mm

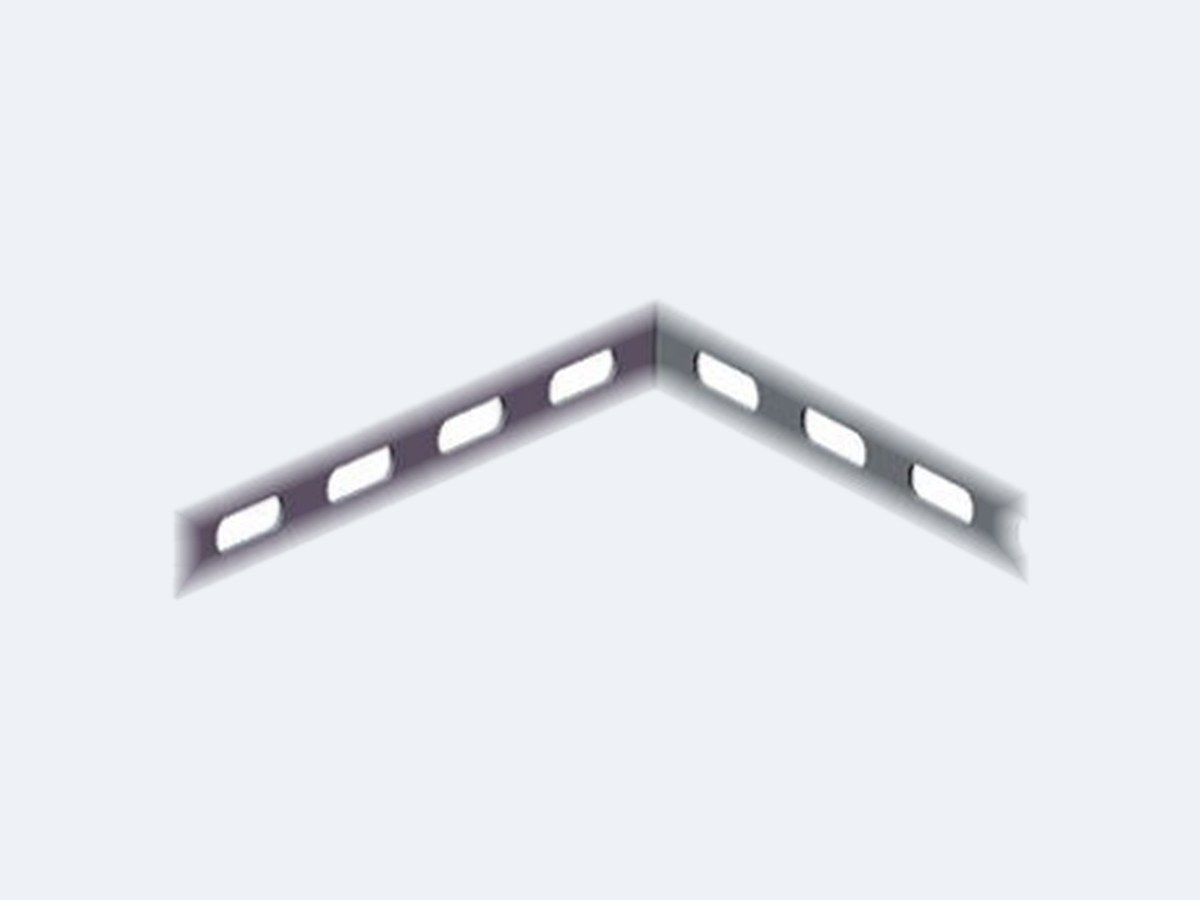

Mesh Elbows & Risers90° horizontal & vertical · W 100–600

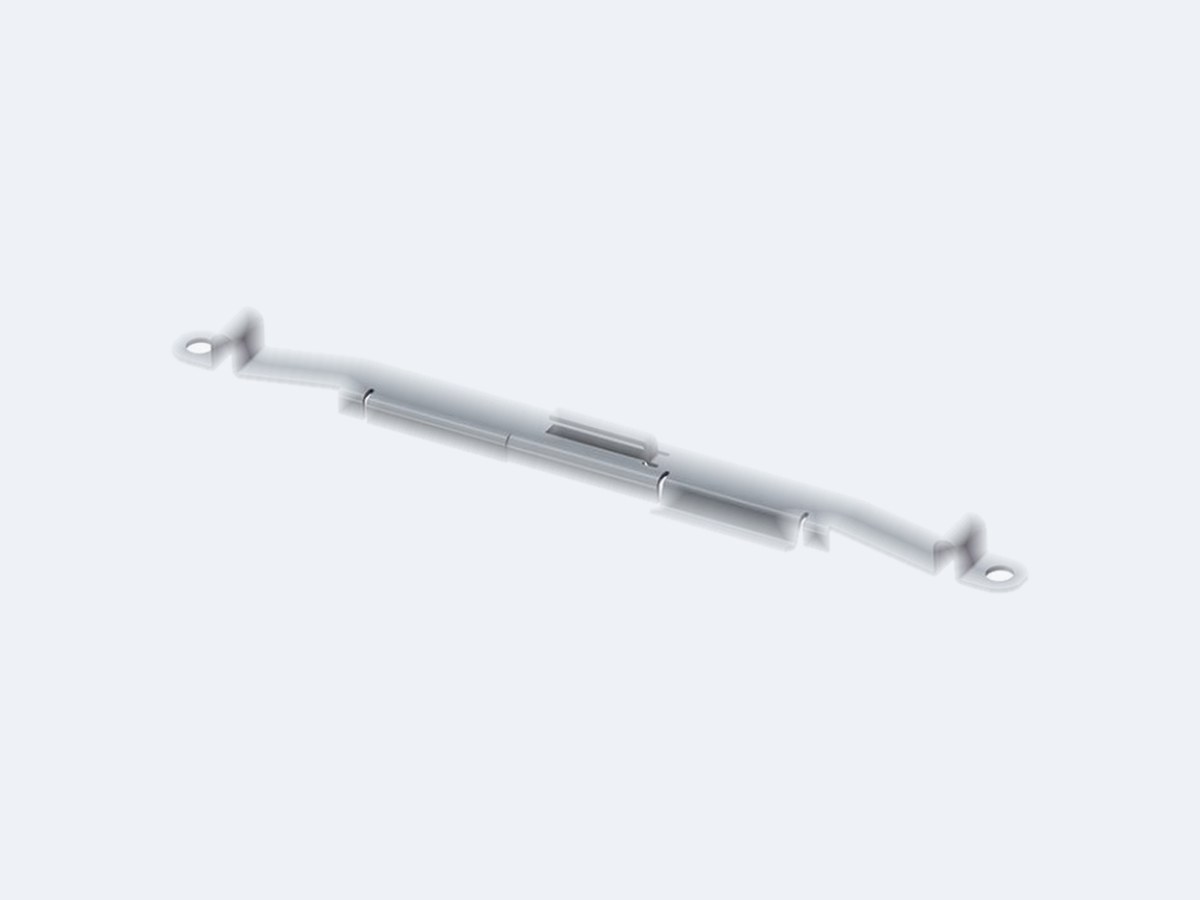

Fast Connector & Splice BarJY-SPL / JY-SBR tool-free joints

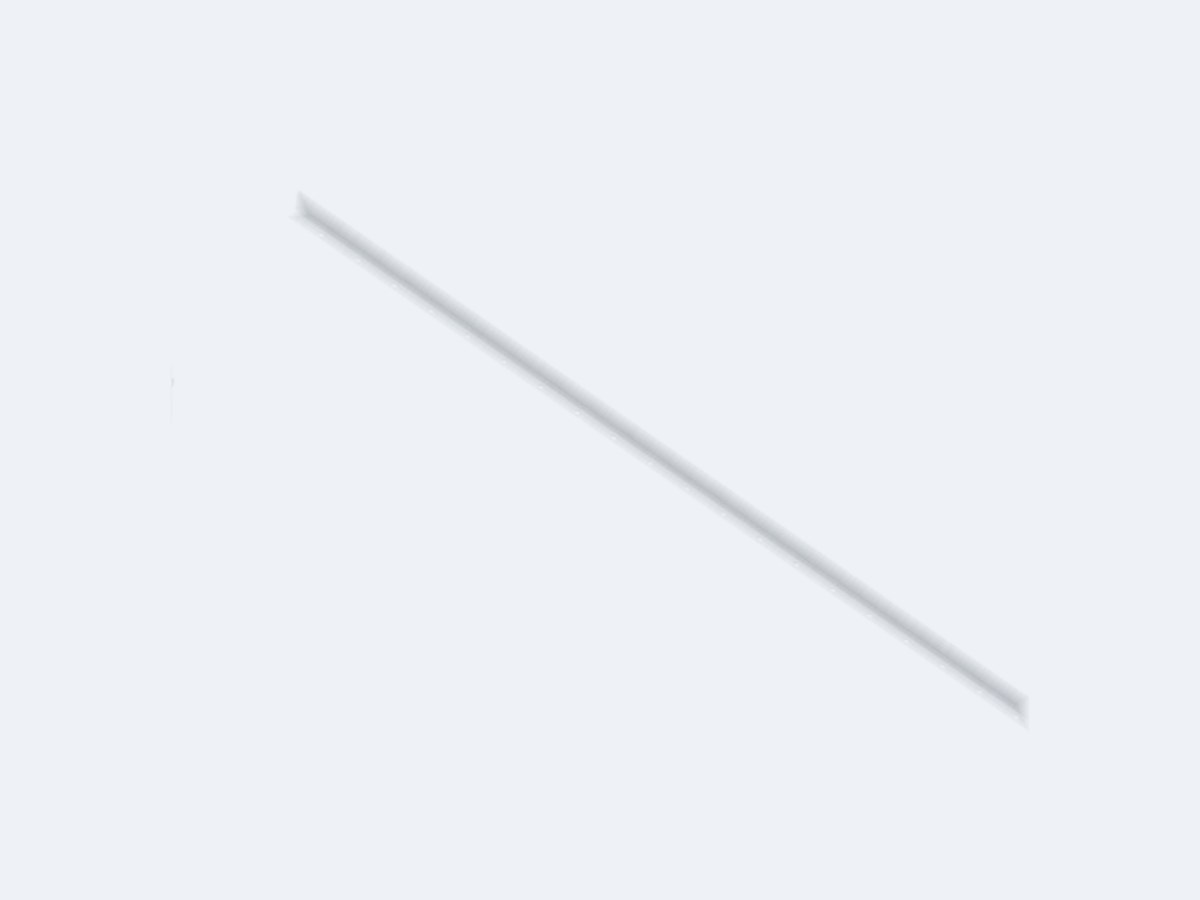

Barriers & Blind EndsPartition & end plate · H 35–100

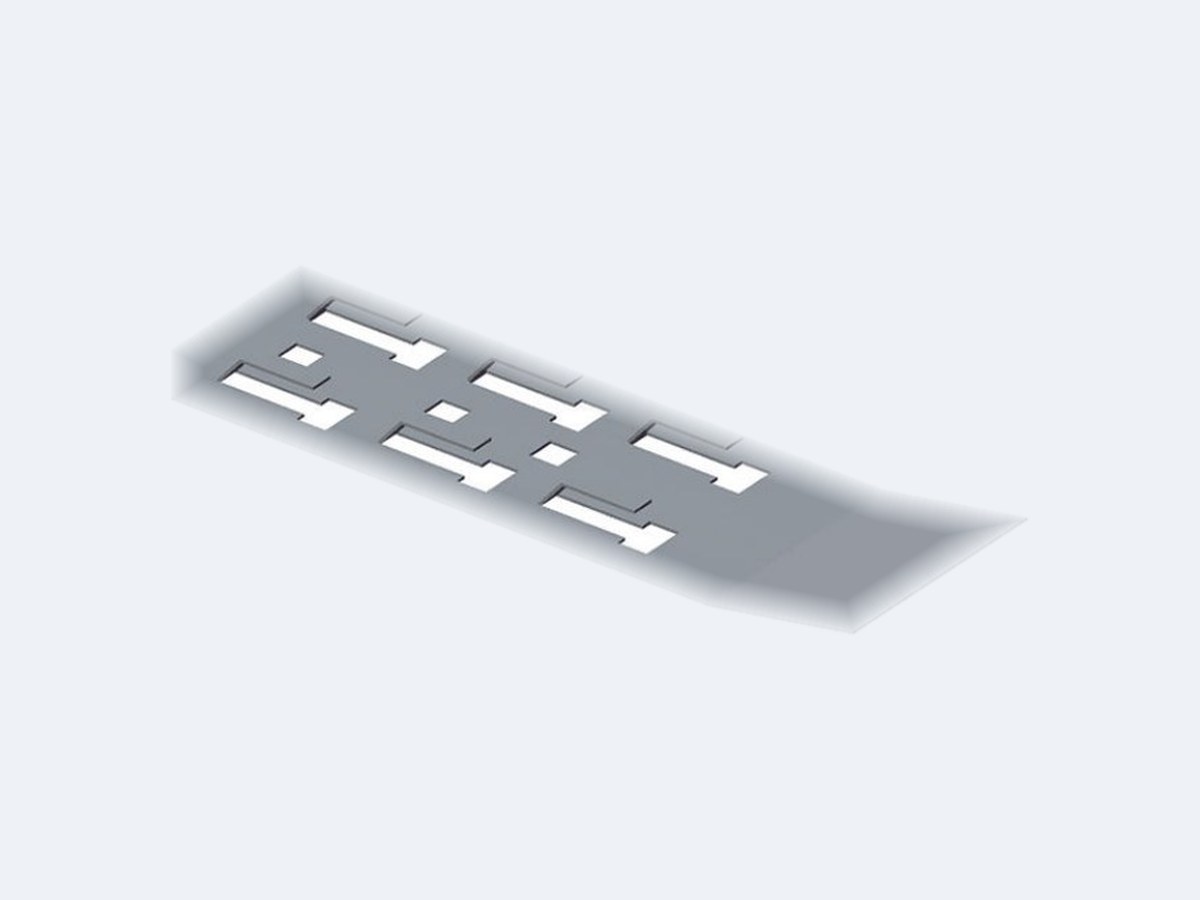

Drop-out PlateCable exit plate for mesh tray

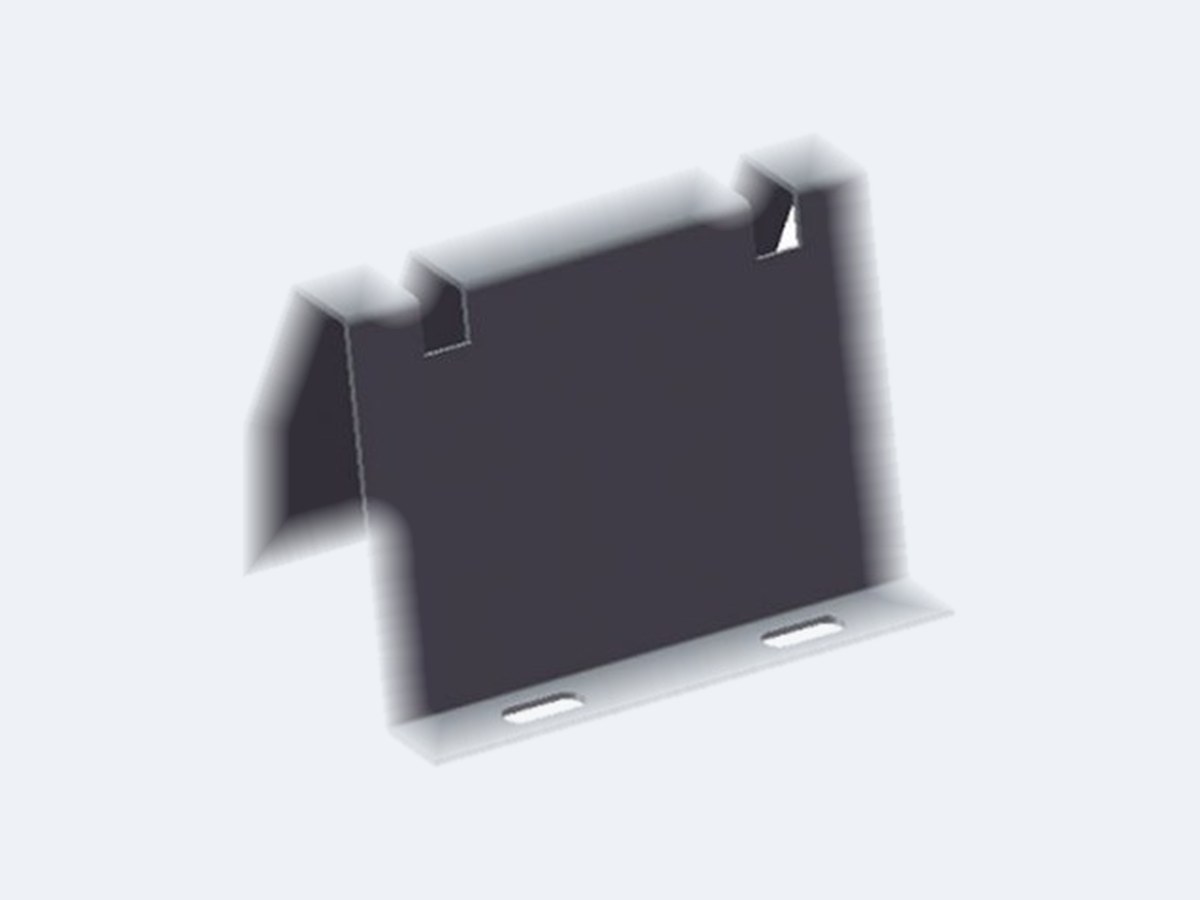

Under-Floor StandJY-FSD floor mounting support

Fully enclosed steel trunking protects cables against dust, impact and interference. Complete fitting program: elbows 90°, tees, crosses, inside/outside risers, reducers, couplers and covers. JY wireway in 63.5 / 102 / 152 mm square sections.

Full Cable Trunking & Wireway specification, sizes & pricing →

Steel TrunkingW 50–1200 · L 2000–6000 mm

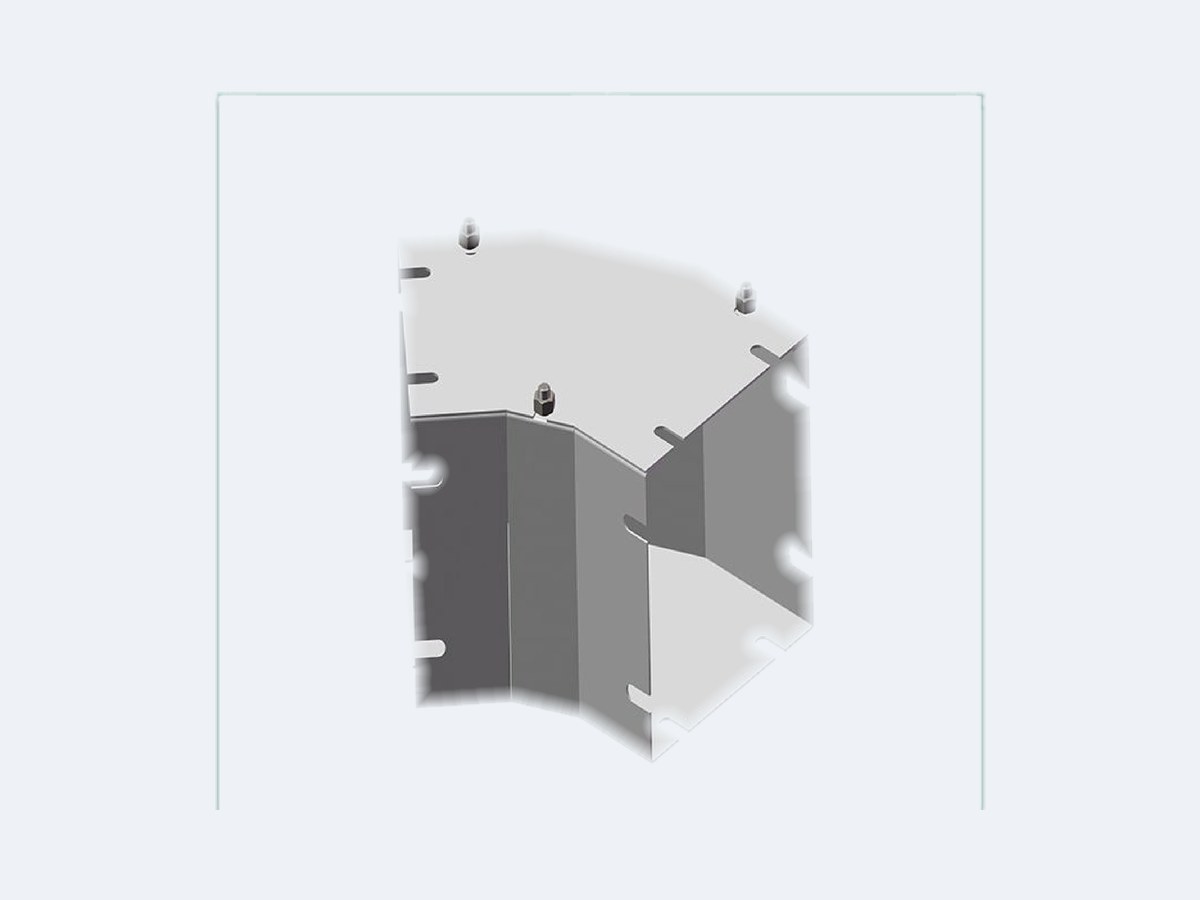

Elbow 90°Horizontal / vertical

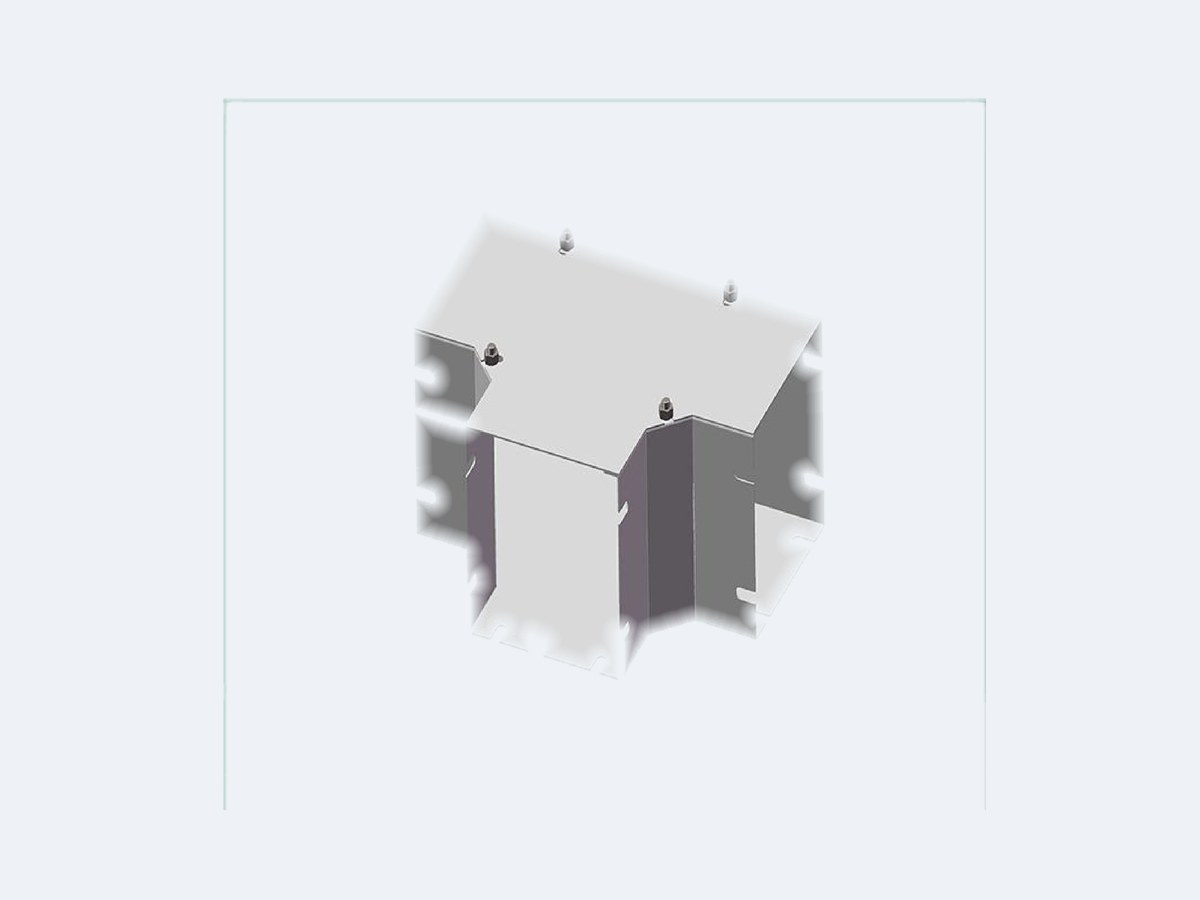

TeeScrew-cover design

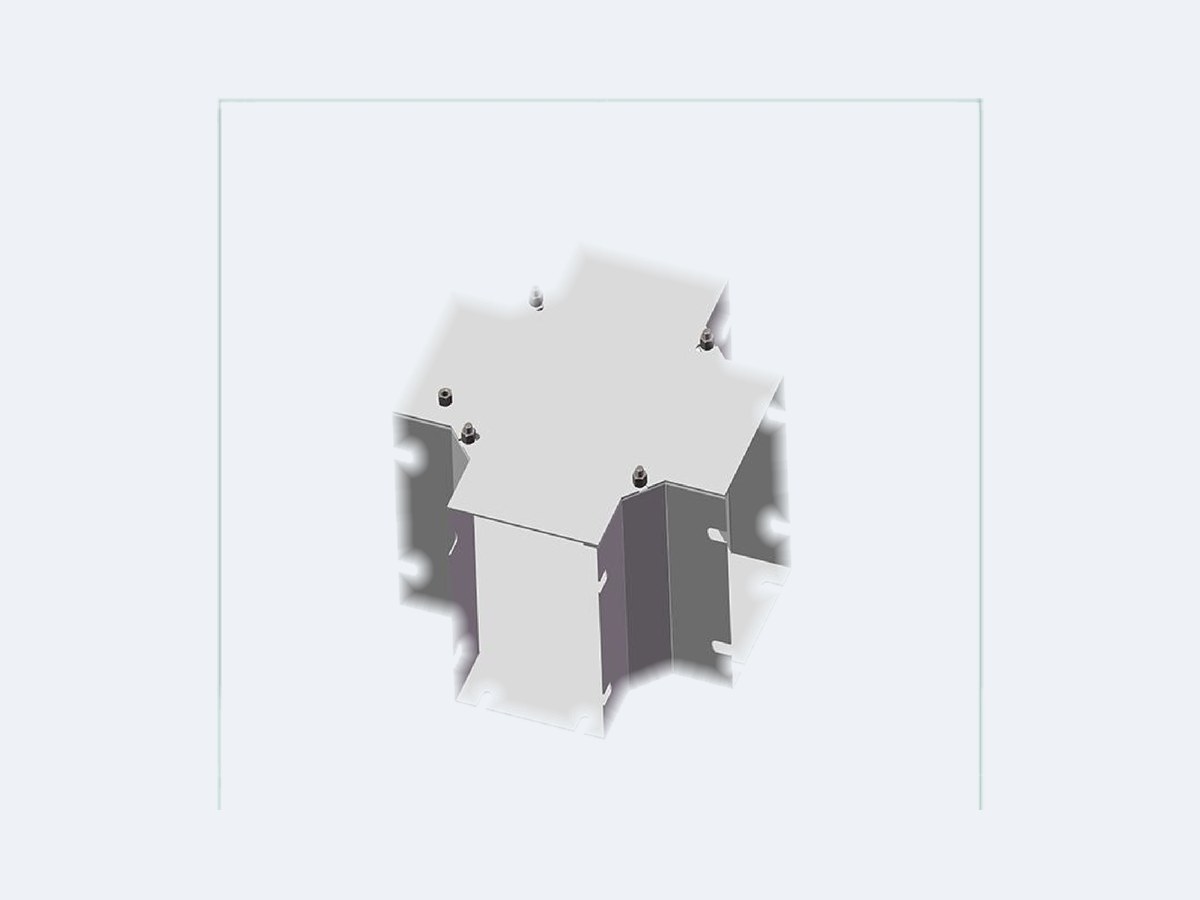

CrossAll sizes matched to trunking

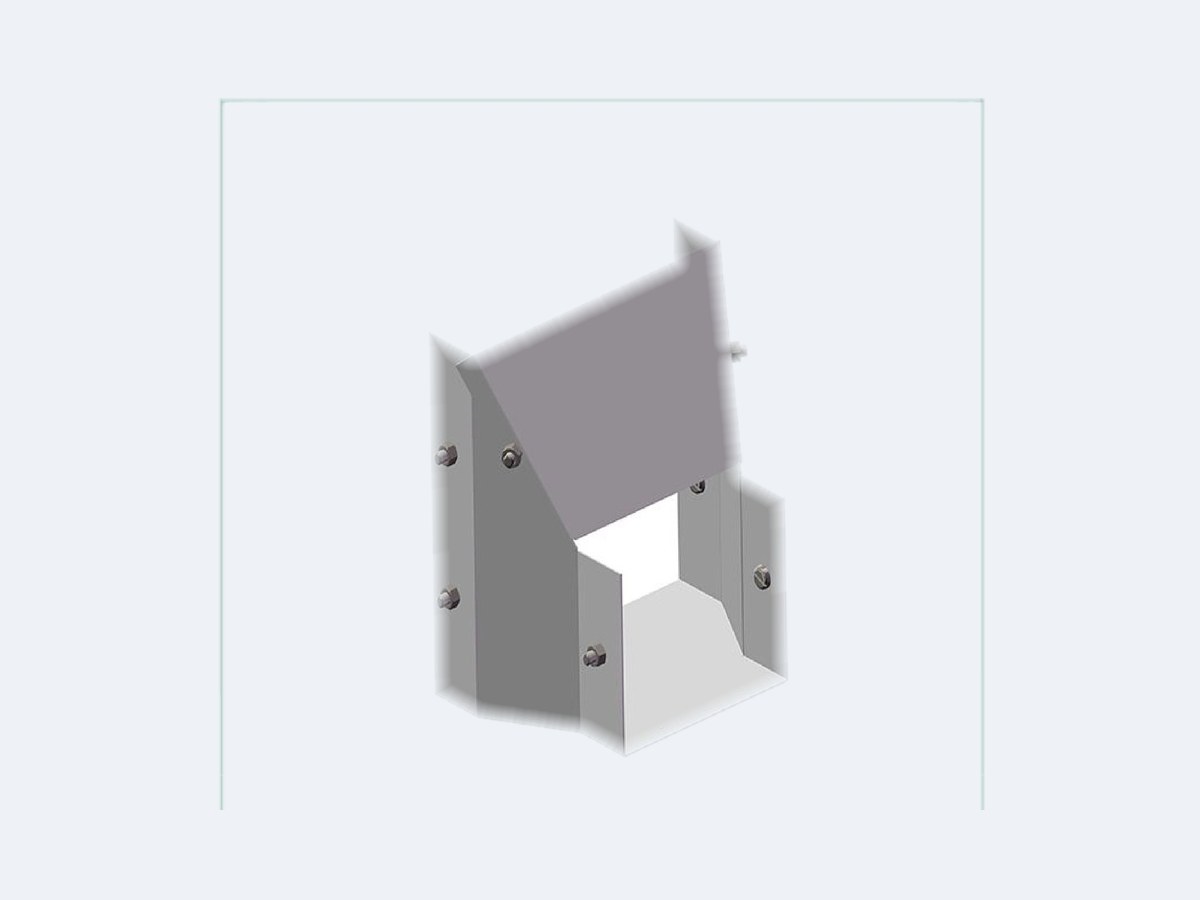

ReducerLeft / right hand

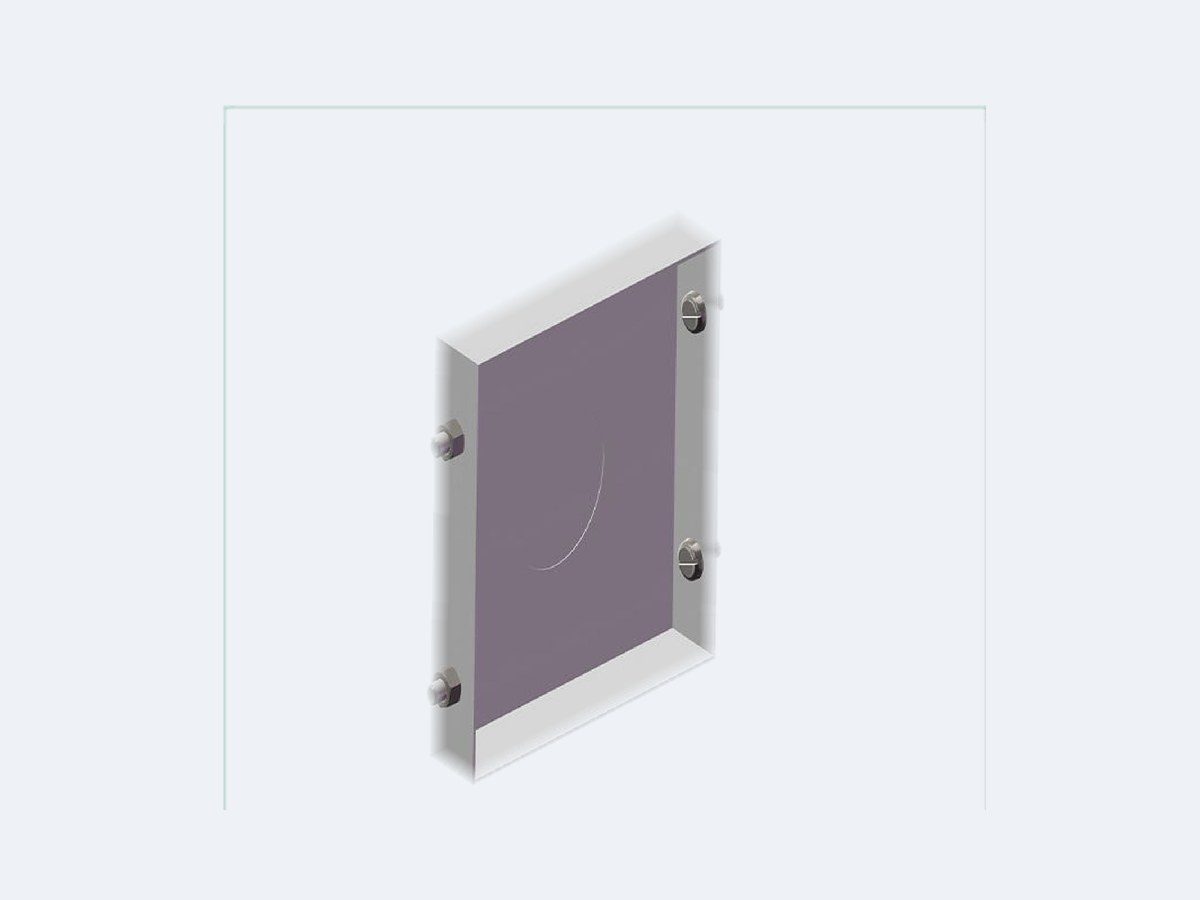

End CapWith fixing screws

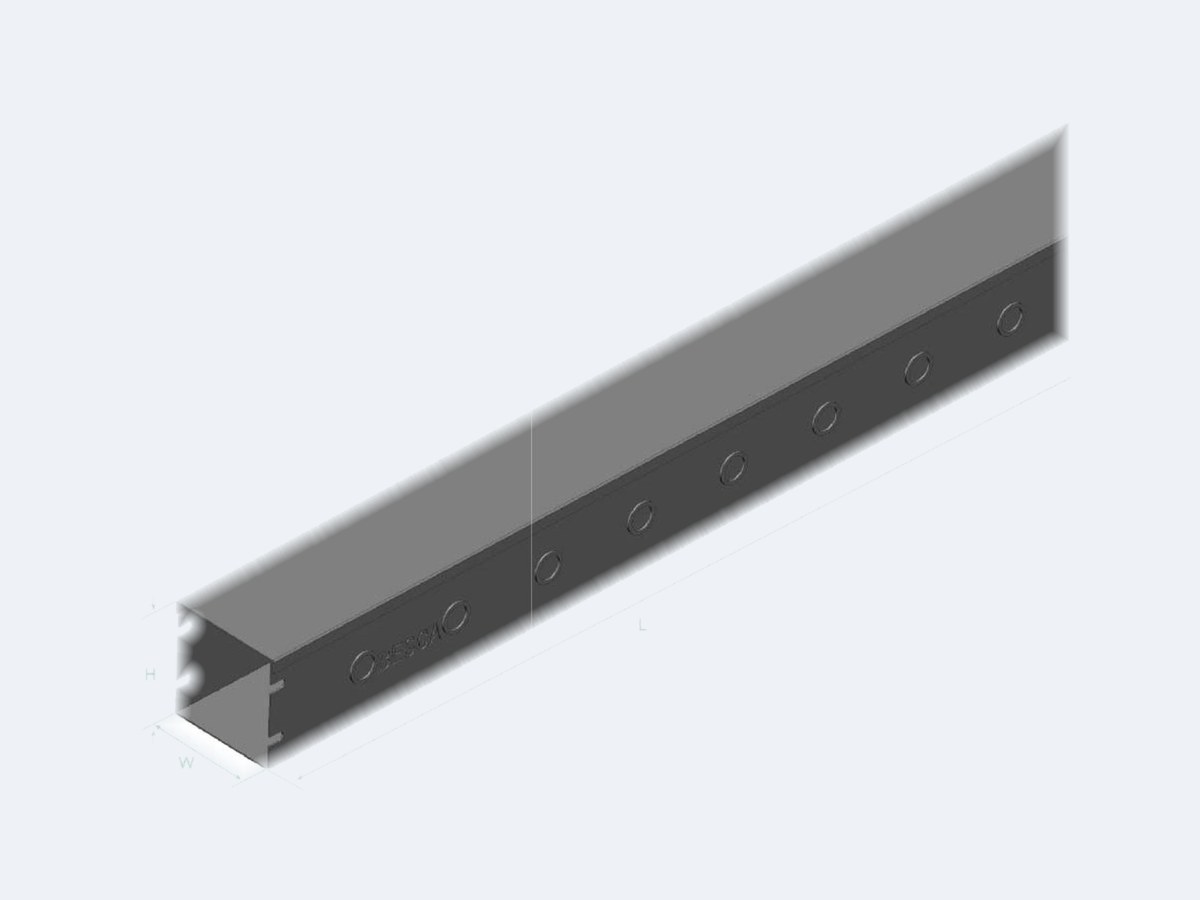

JY Wireway63.5 / 102 / 152 mm · L 2440 mm

Wireway Elbows 45° / 90°JY-EF / JY-EN · 63.5–152

Wireway Flange & Connect CouplerJY-F / JY-CC adapter set

Molded fiberglass-reinforced trays and trunking that never rust — the choice for chemical plants, coastal installations, tunnels and wastewater projects. Range covers FRP-T2 fiberglass ladder trays, FRP perforated trays, FRP-C trunking and molded fittings. High strength-to-weight, electrically non-conductive, UV-stabilized, fire-retardant grades available.

Full FRP / GRP Cable Tray specification, sizes & pricing →

FRP Cable TrunkingW 50–1200 · L 2000–6000 mm

FRP Ladder TrayChemical & corrosion resistant

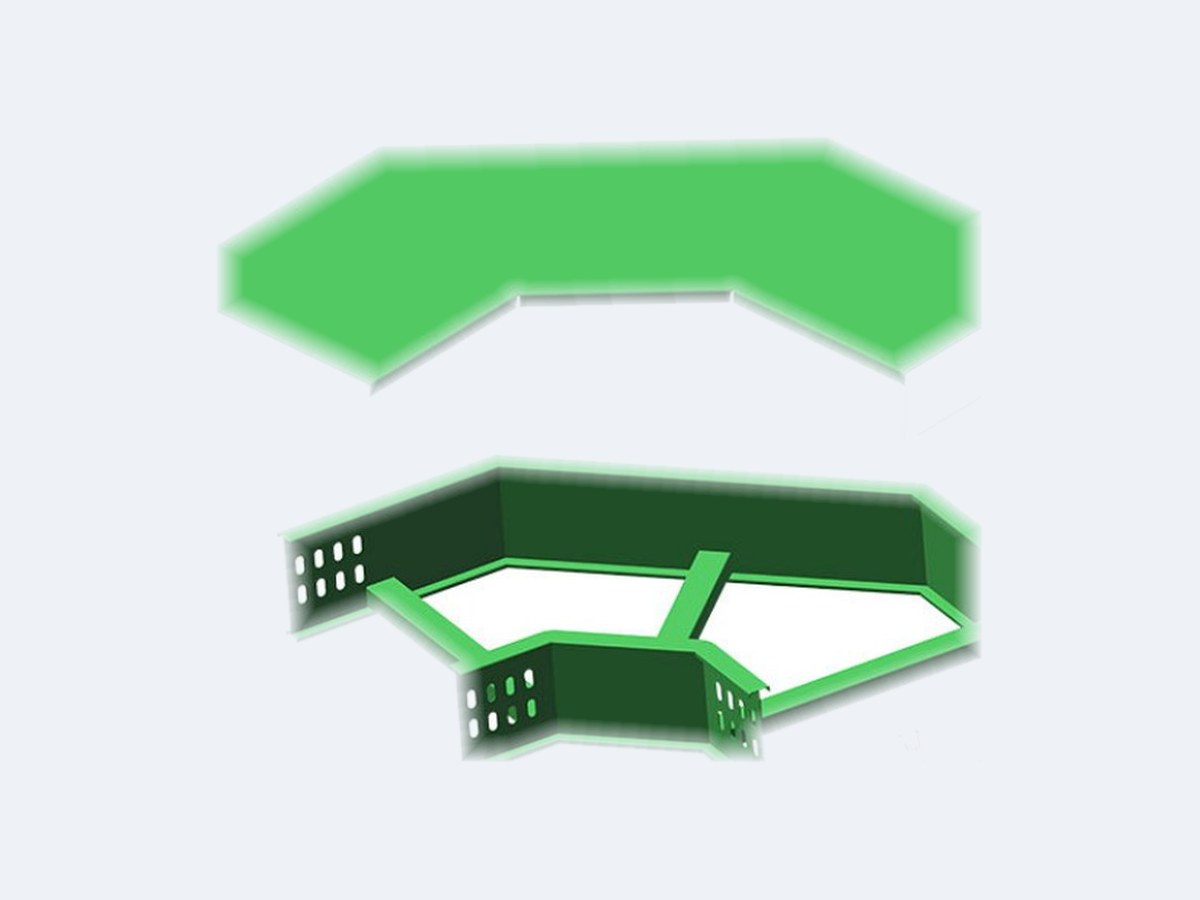

FRP Elbow, Tee & CrossFRP-T-02 / 03A / 04A · W 200–1000

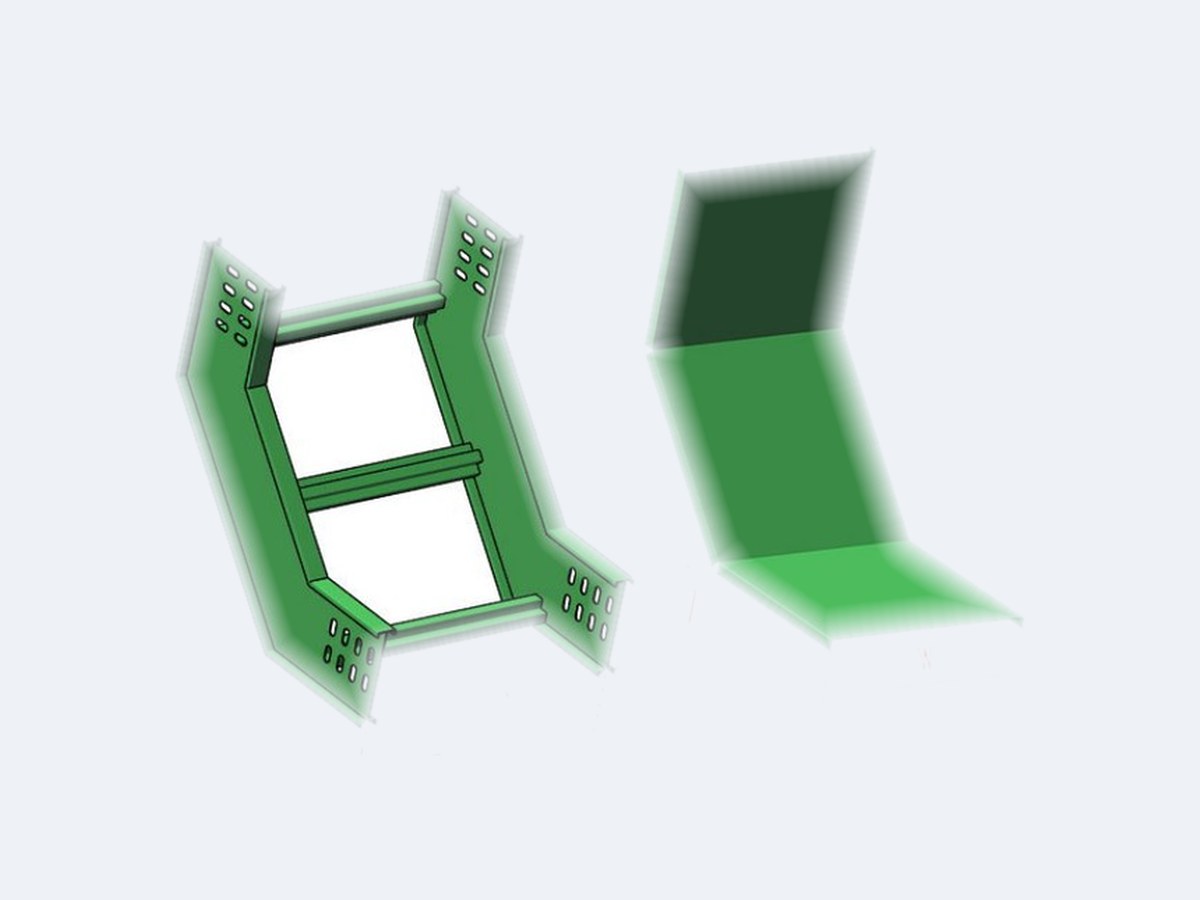

FRP Risers & Reducers135° inside / outside · width reducers

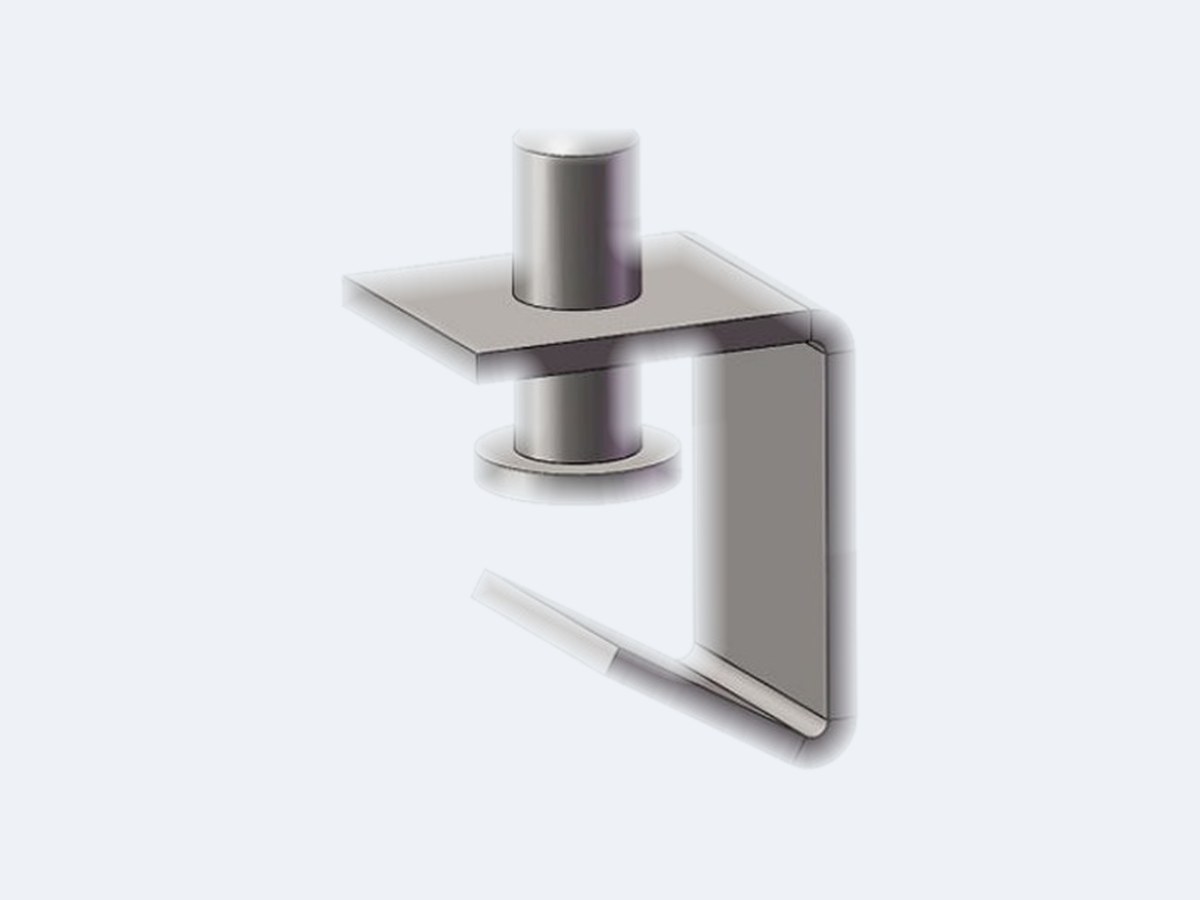

FRP Cover Clamps & DividerGK / MK clamps · FRP divider strips

Modular steel framing for supporting trays, conduits and mechanical services: plain, slotted and combination channels, concrete insert channels, plus a full fitting program of spring nuts, beam clamps, base plates, U-fittings and threaded rod.

Full Strut Channel & Fittings specification, sizes & pricing →

Plain / Slotted Channel41×41 · 41×21 mm

Combination ChannelBack-to-back profiles

U FittingSplice & corner connection

Base PlateColumn support footing

Beam ClampM8 / M10 / M12 rod

Concrete Insert ChannelCast-in 41×41 / 41×21 · L 3000

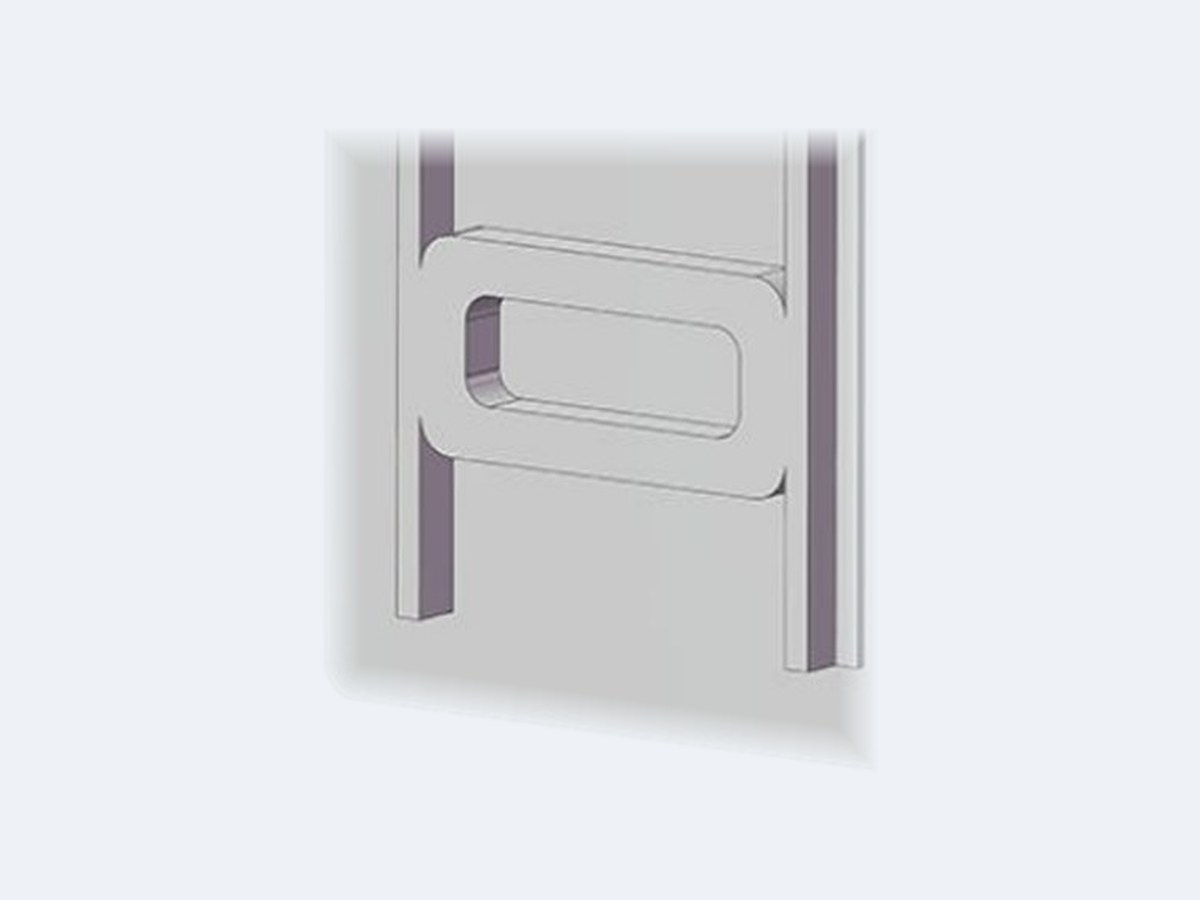

Channel ClosuresEnd caps for 41 / 62 mm profiles

2/3/4-Hole Fittings & Corner BendsB1062–B1064 · bolt size 8–12

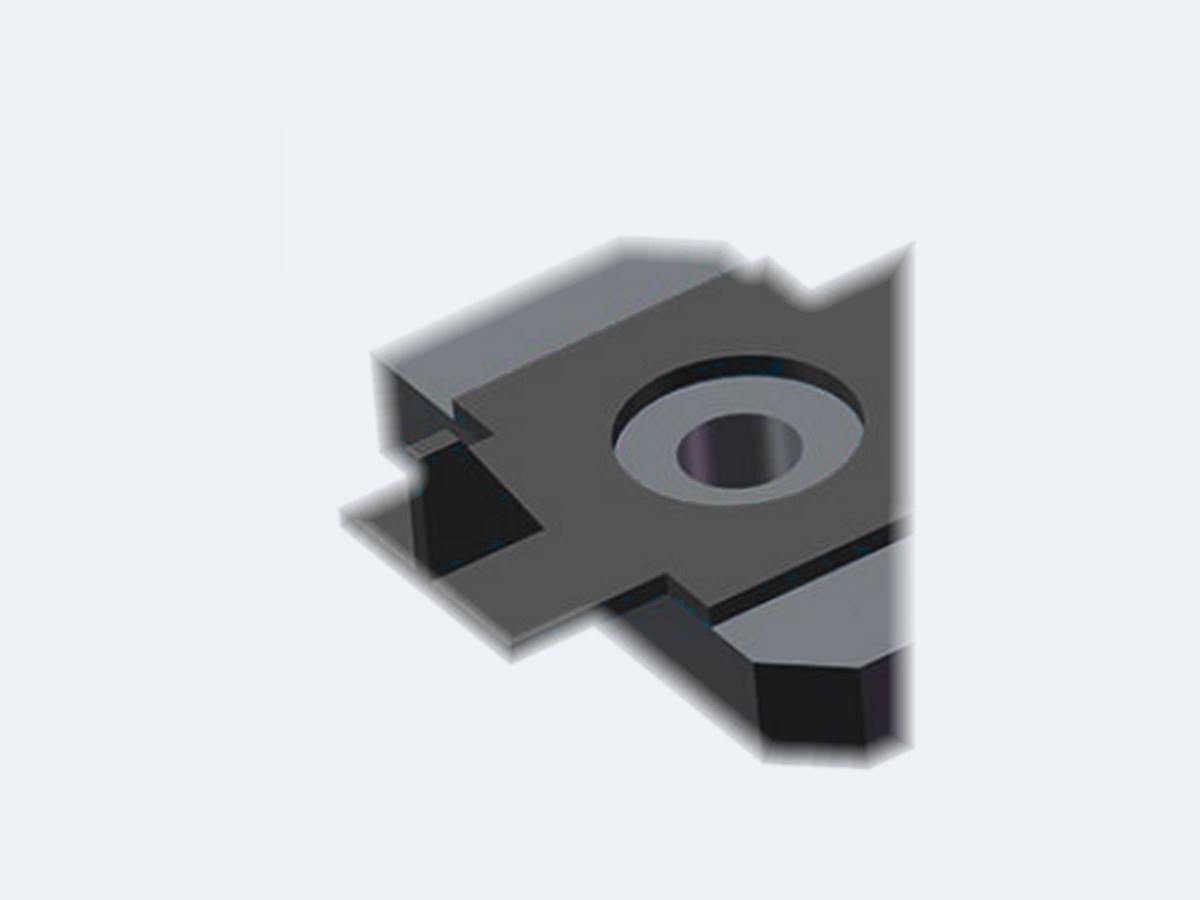

Channel Nuts — Short / No SpringM6–M12 · with washers option

Every change of direction and level covered: horizontal elbows 90°/135°, tees, crosses, inside & outside risers, reducers, rises 100–300 mm and blank ends — all matched to tray width, height and finish.

Full Cable Tray Fittings specification, sizes & pricing →

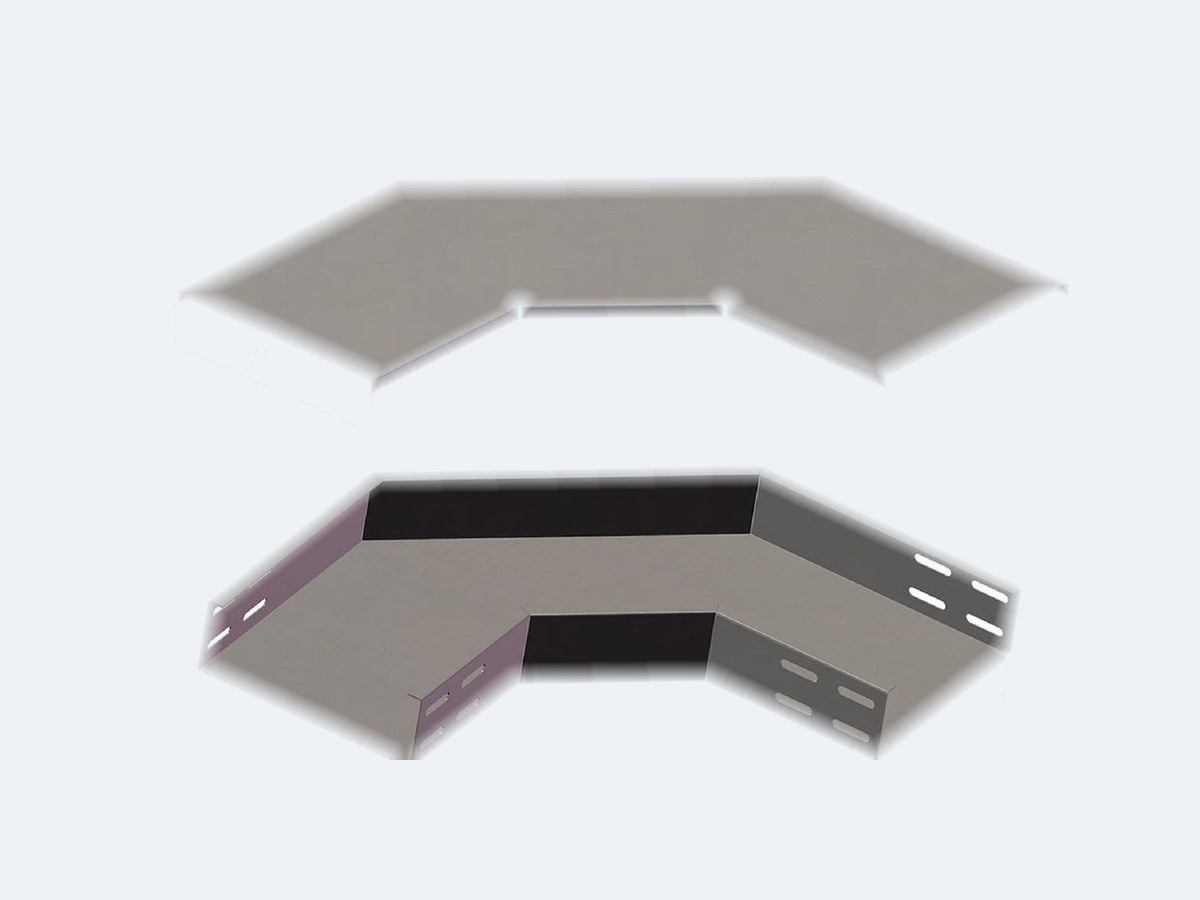

Elbow 90°Horizontal / vertical

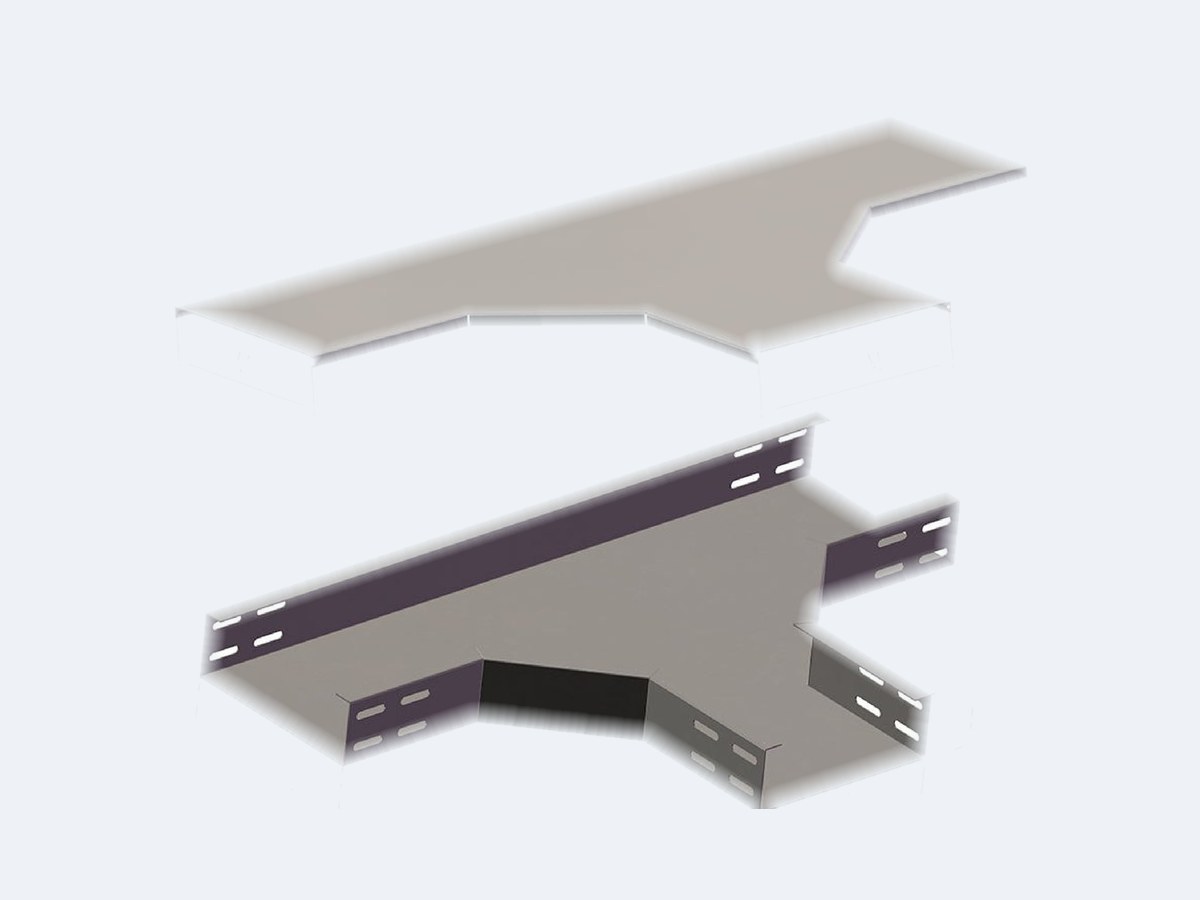

TeeW 50–1200 mm

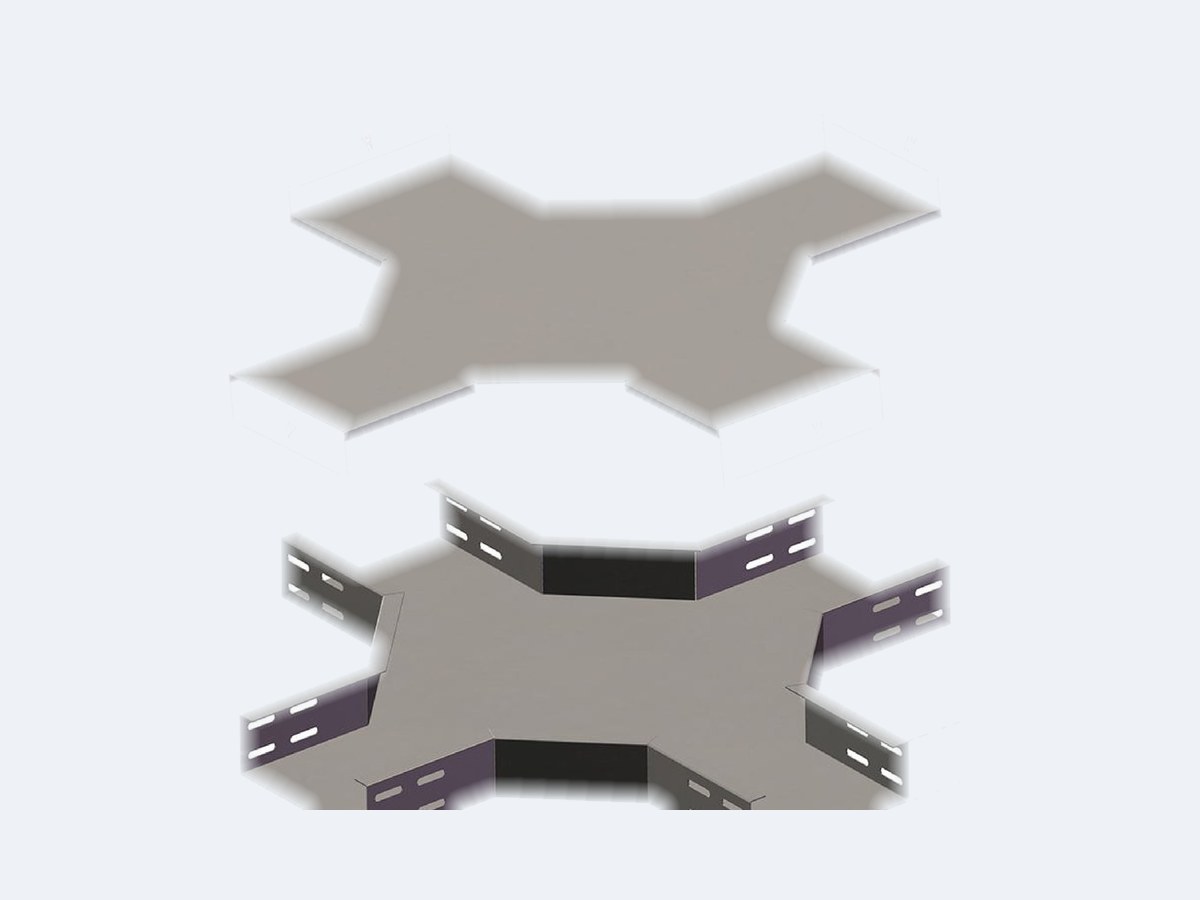

Cross4-way junction

Risers & Bends100 / 200 / 300 mm

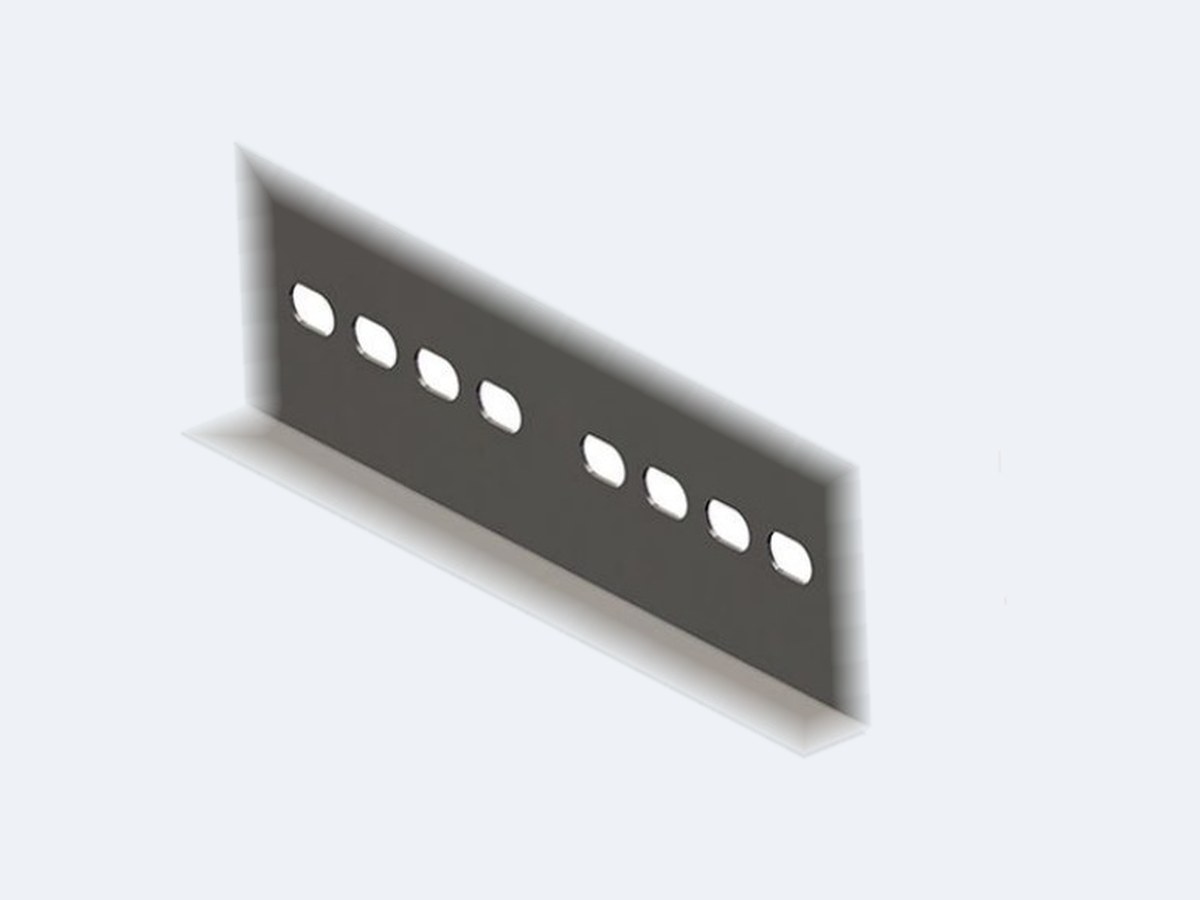

Straight CouplersInside / outside · W 50–200

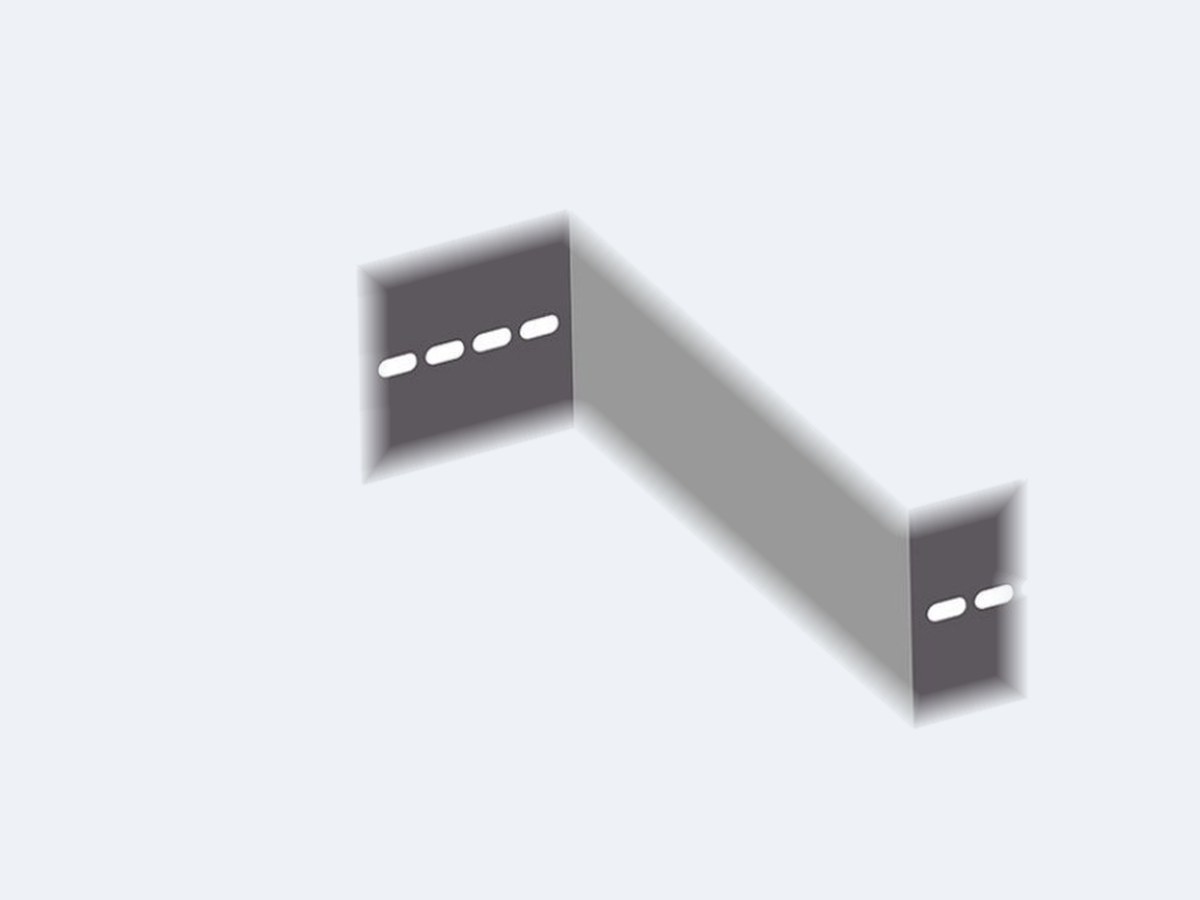

Width & Height Adjust CouplersXQJ-TPC-050A / 040A

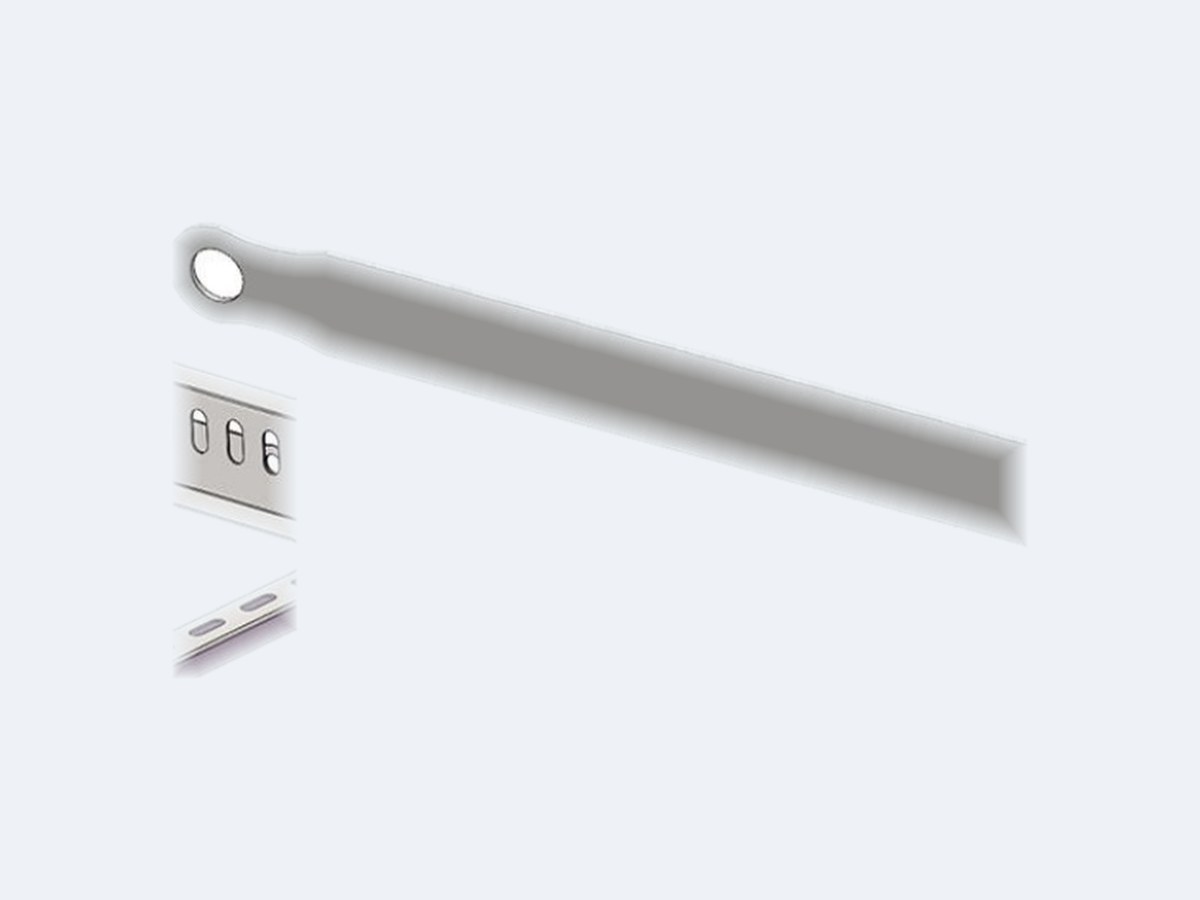

Bonding JumperCopper strap 2.5 / 4 / 6 mm²

Everything to hang, join, cover and secure your installation: cantilever & wall brackets, ceiling columns, straight (U-type) trapeze brackets, couplers, cover clamps, hold-down brackets, corner plates, spring nuts, flange bolts, plus conduit / saddle / pear-hanger / insulated pipe clamps for cable and conduit fixing.

Full Brackets & Accessories specification, sizes & pricing →

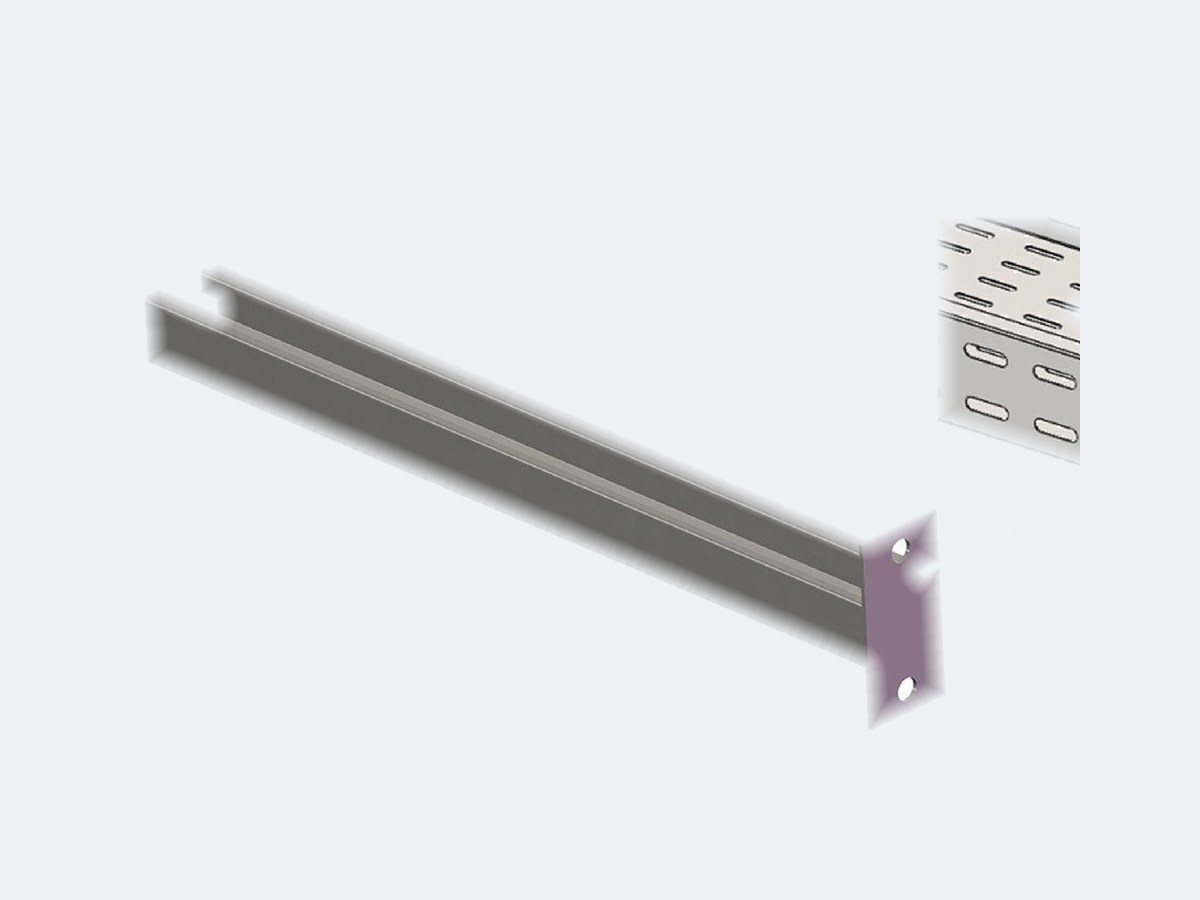

Wall BracketProjection 70–450 mm

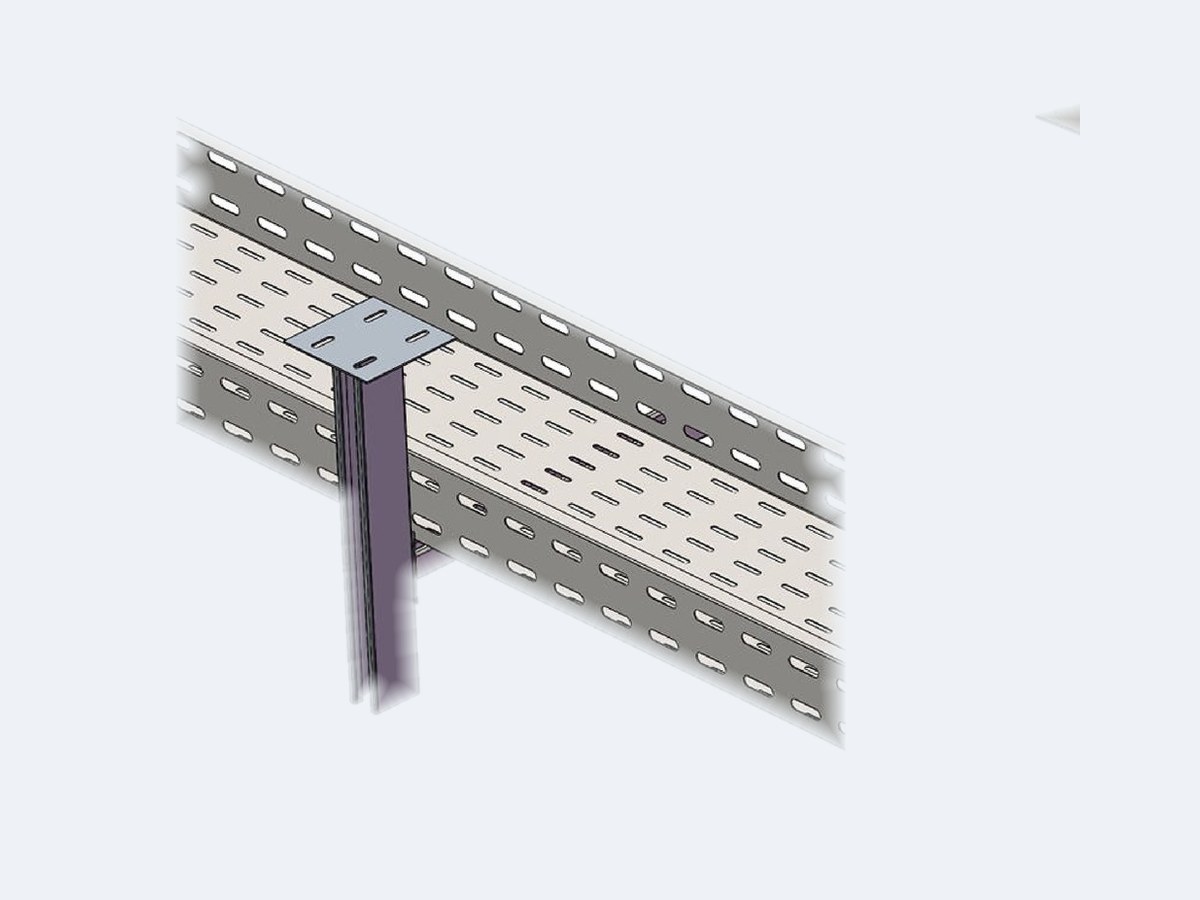

Ceiling Column Bracket300–3000 mm drop

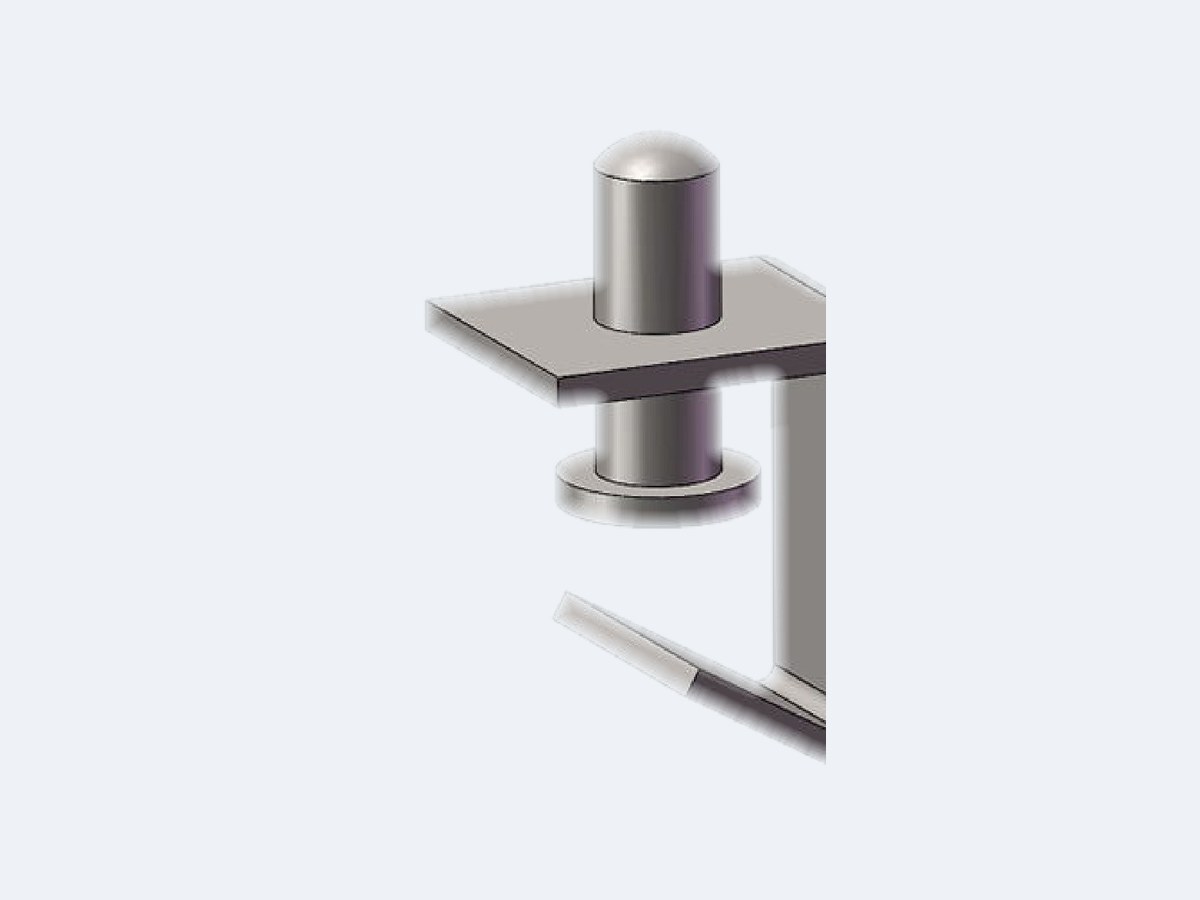

Cover Clamp MKWeld-free cover fixing

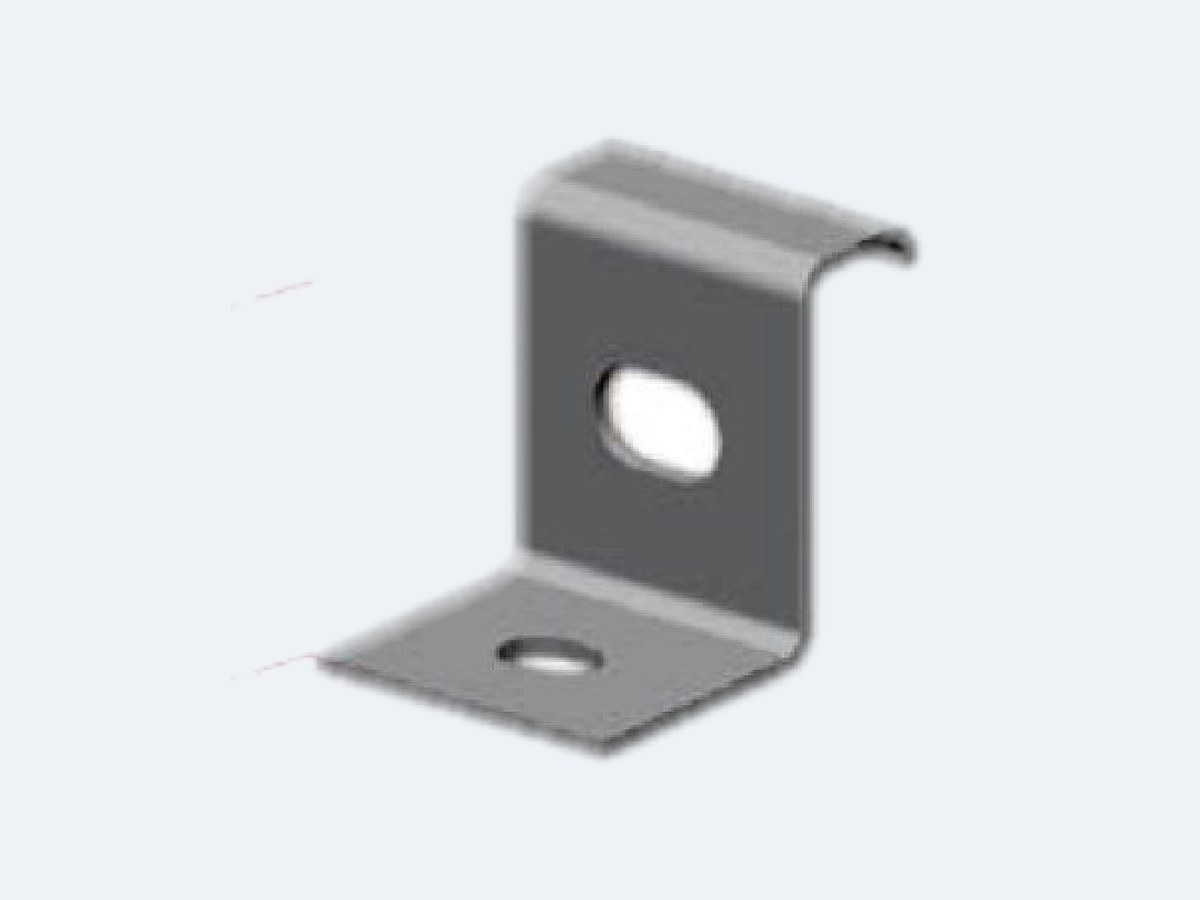

Hold-Down BracketS-type tray clamp

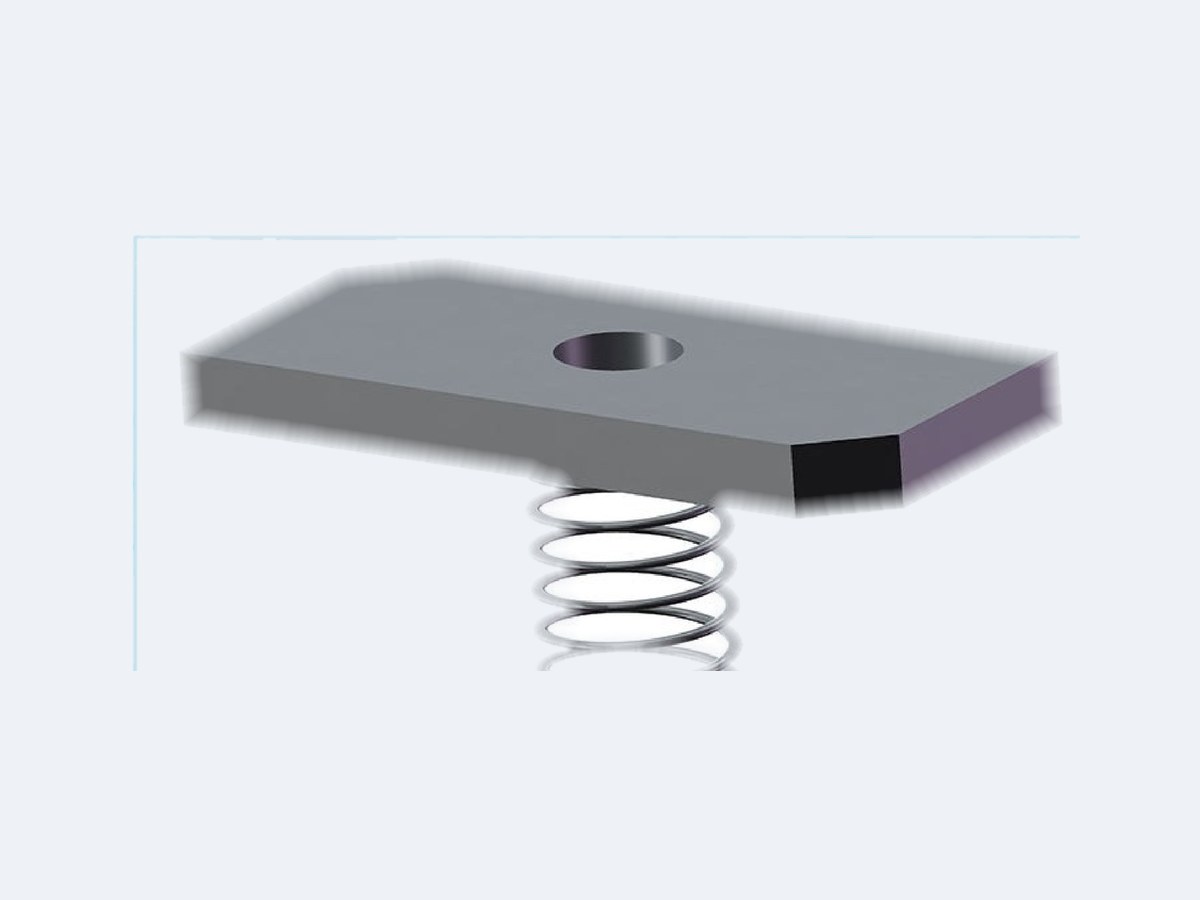

Long Spring NutFor strut channel

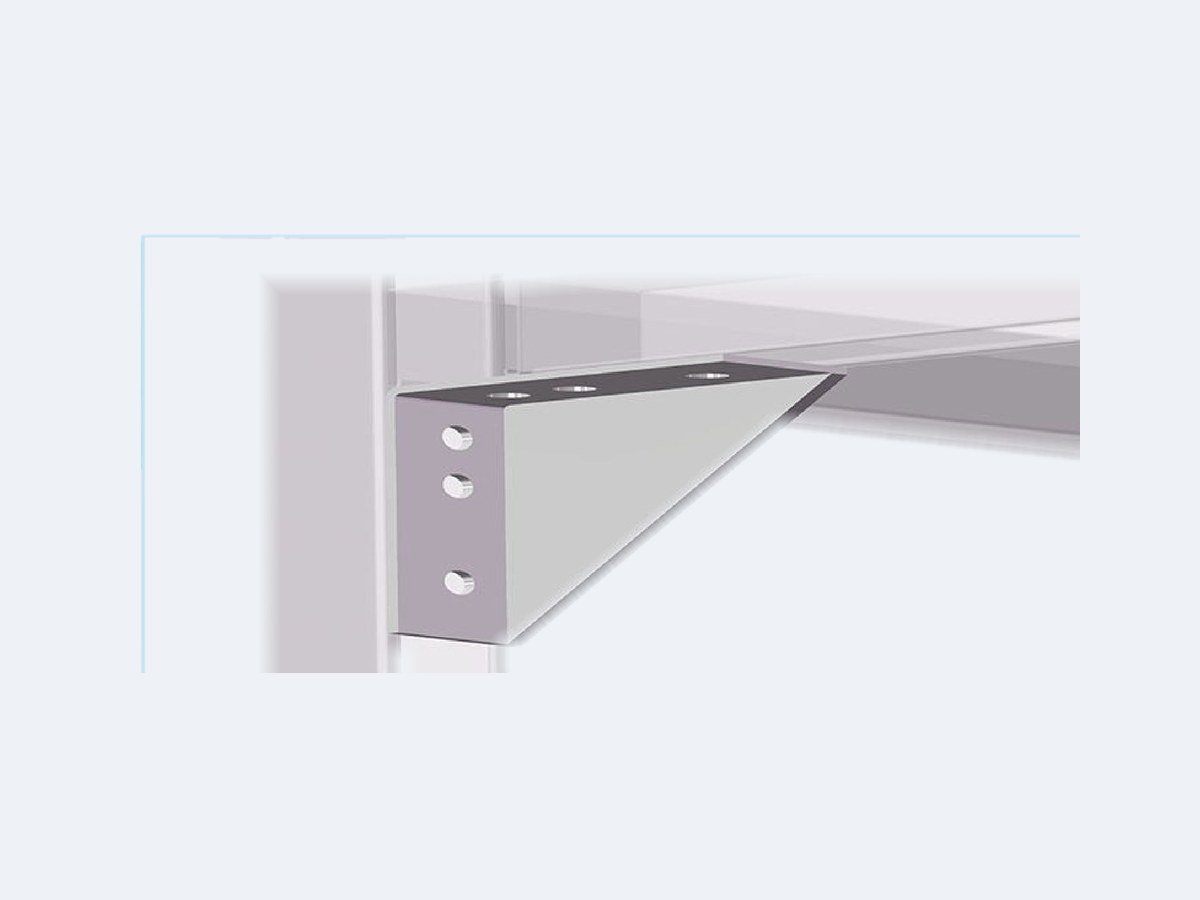

Angle Bar BracketTray-to-column support

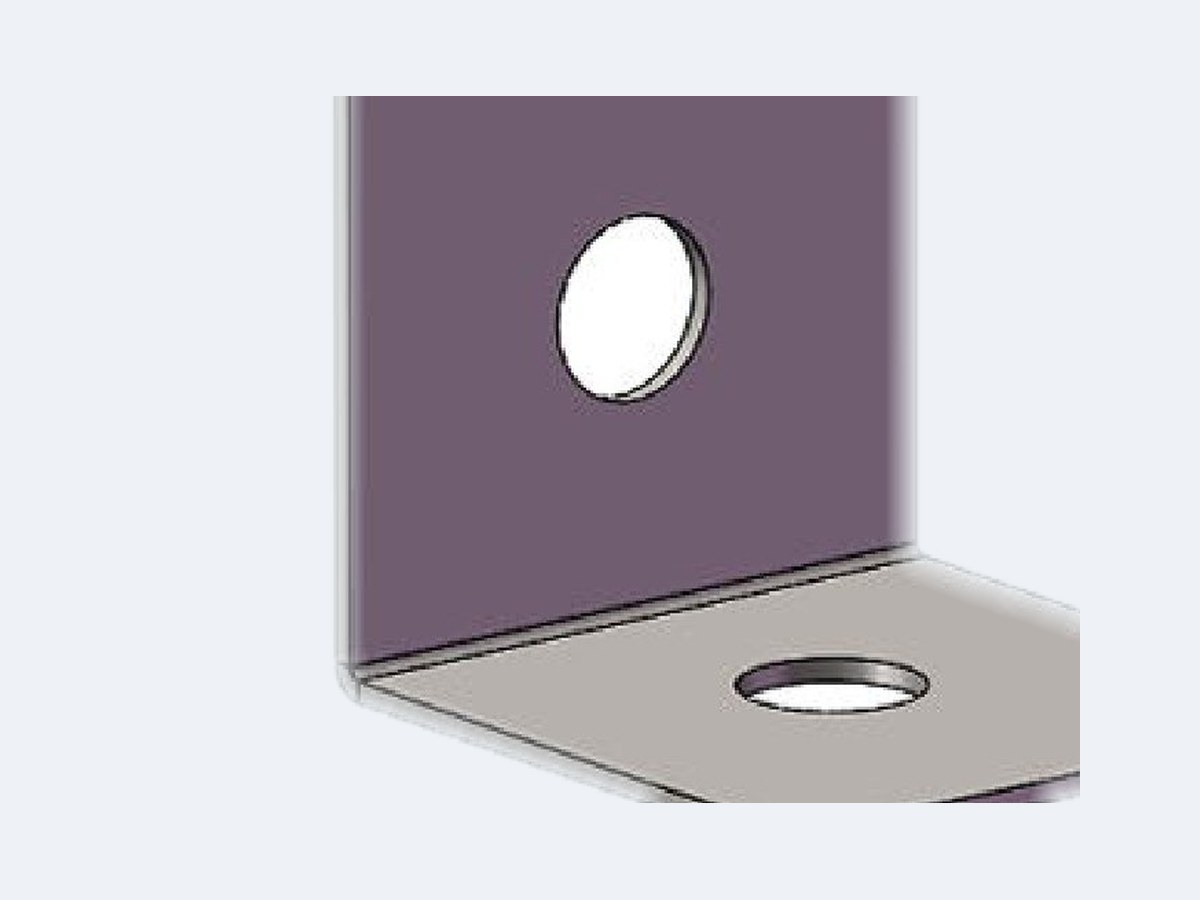

Corner PlateReinforcement plate

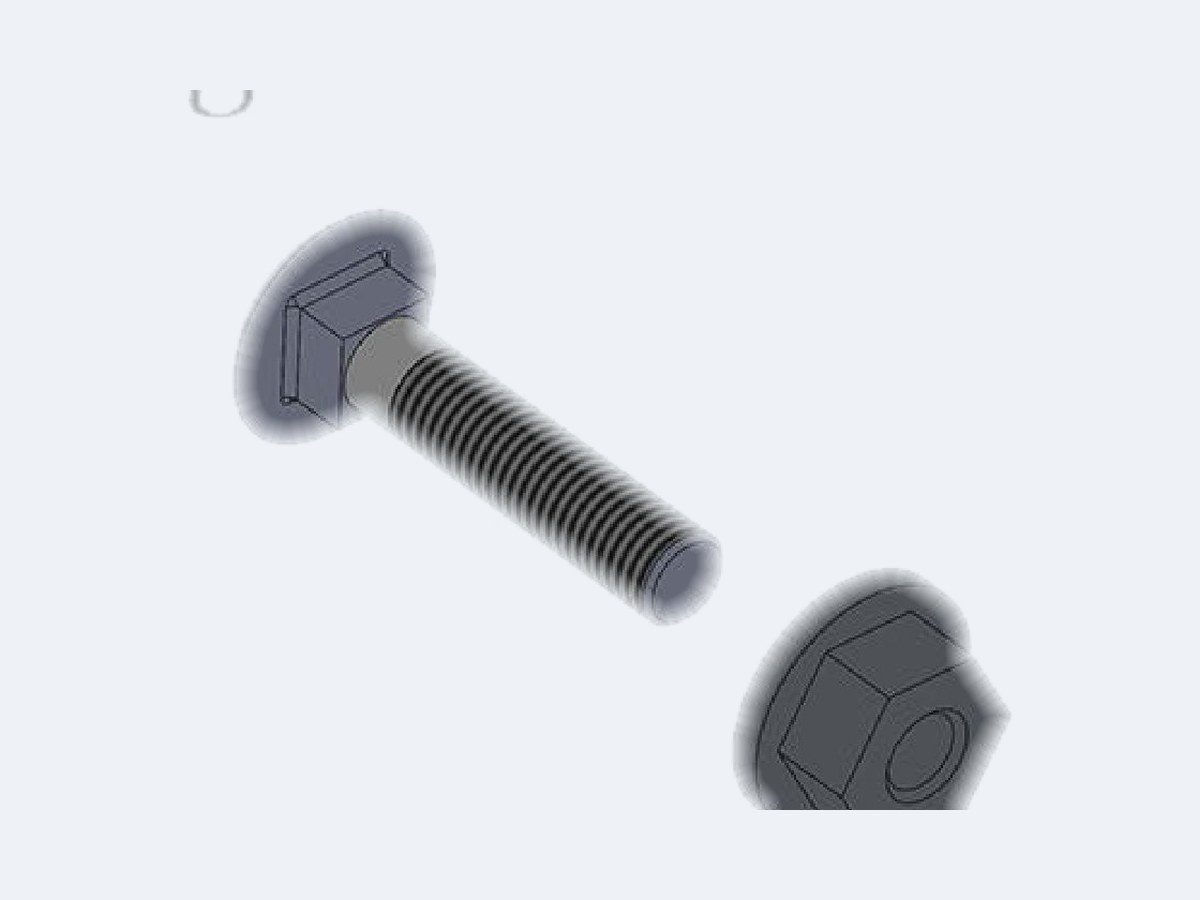

Cup Head Bolt & Flange NutM8 – M30

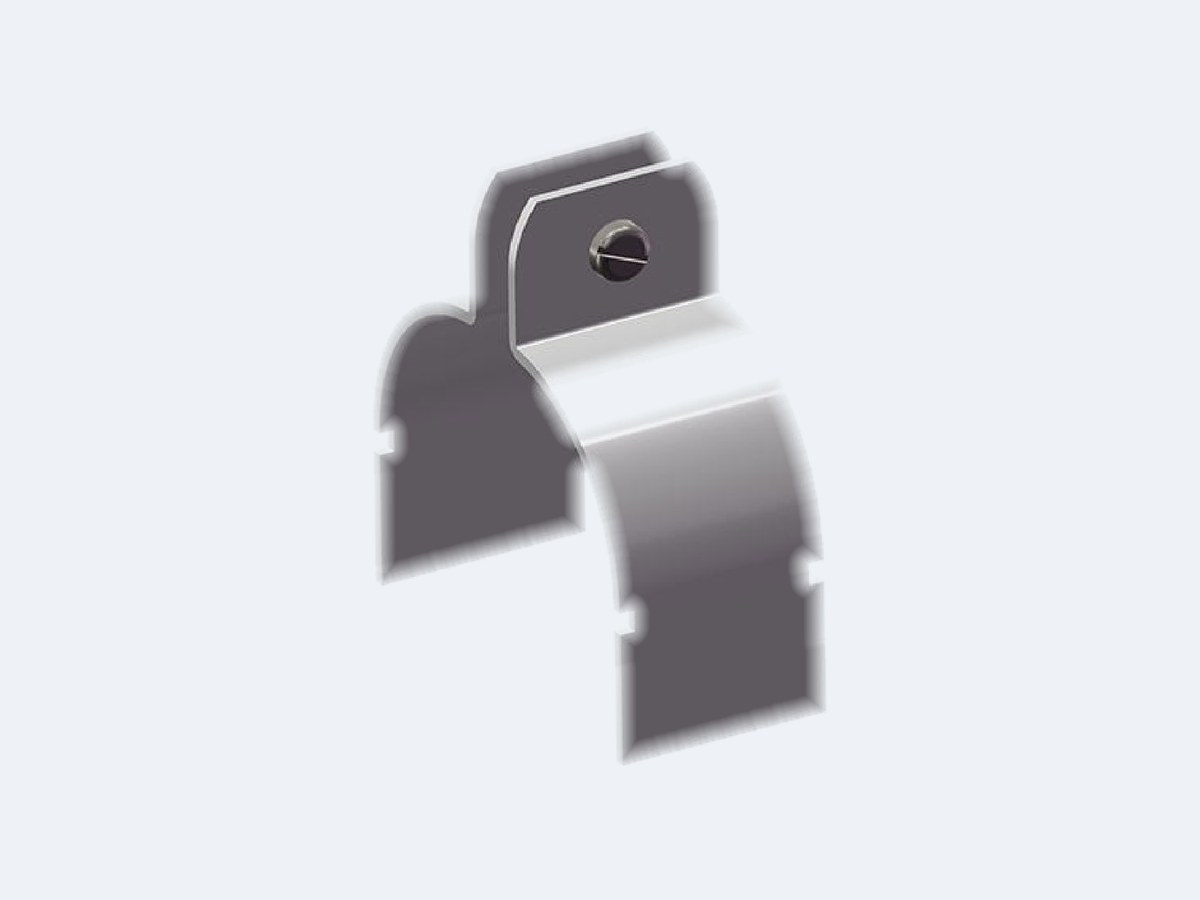

Conduit ClampØ 21.3–324 mm

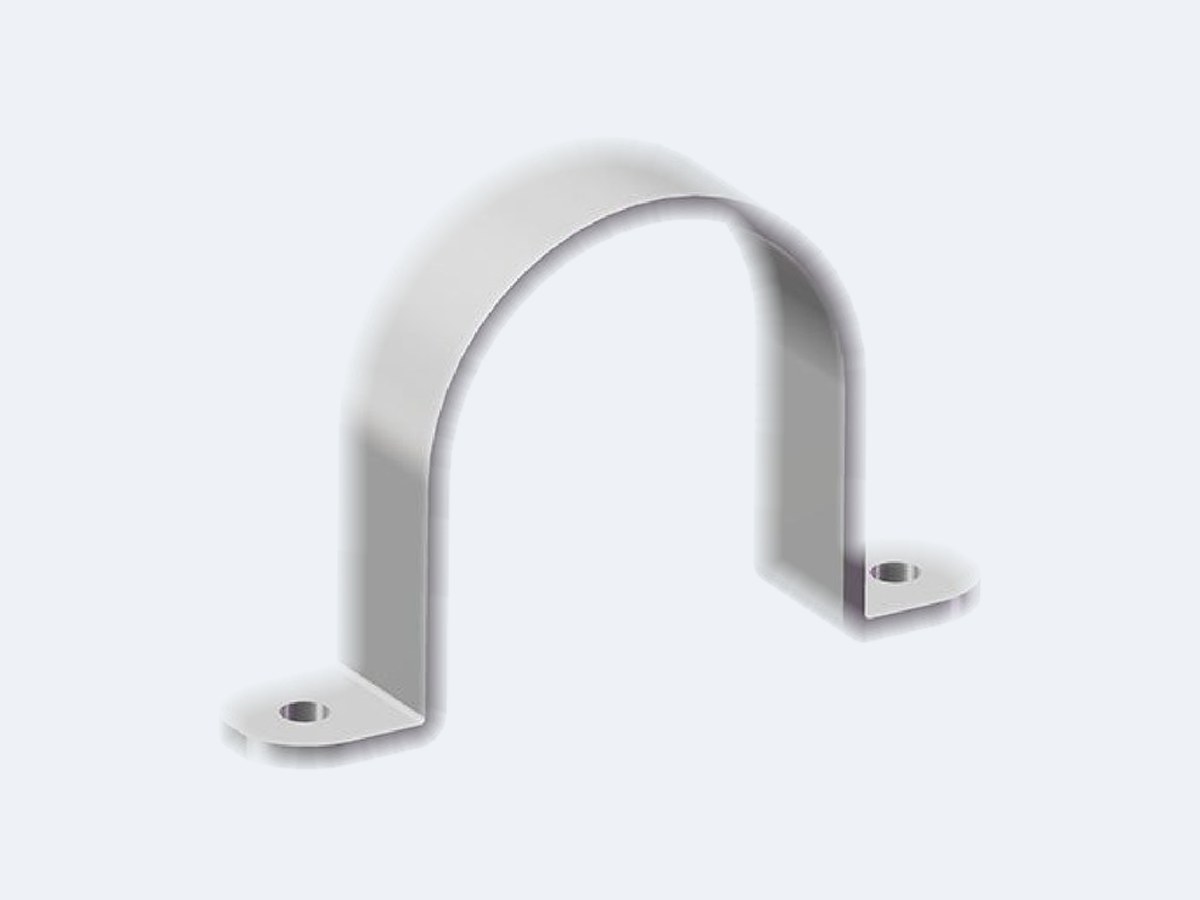

Saddle ClampTwo-hole fixing, Ø 21.3–324 mm

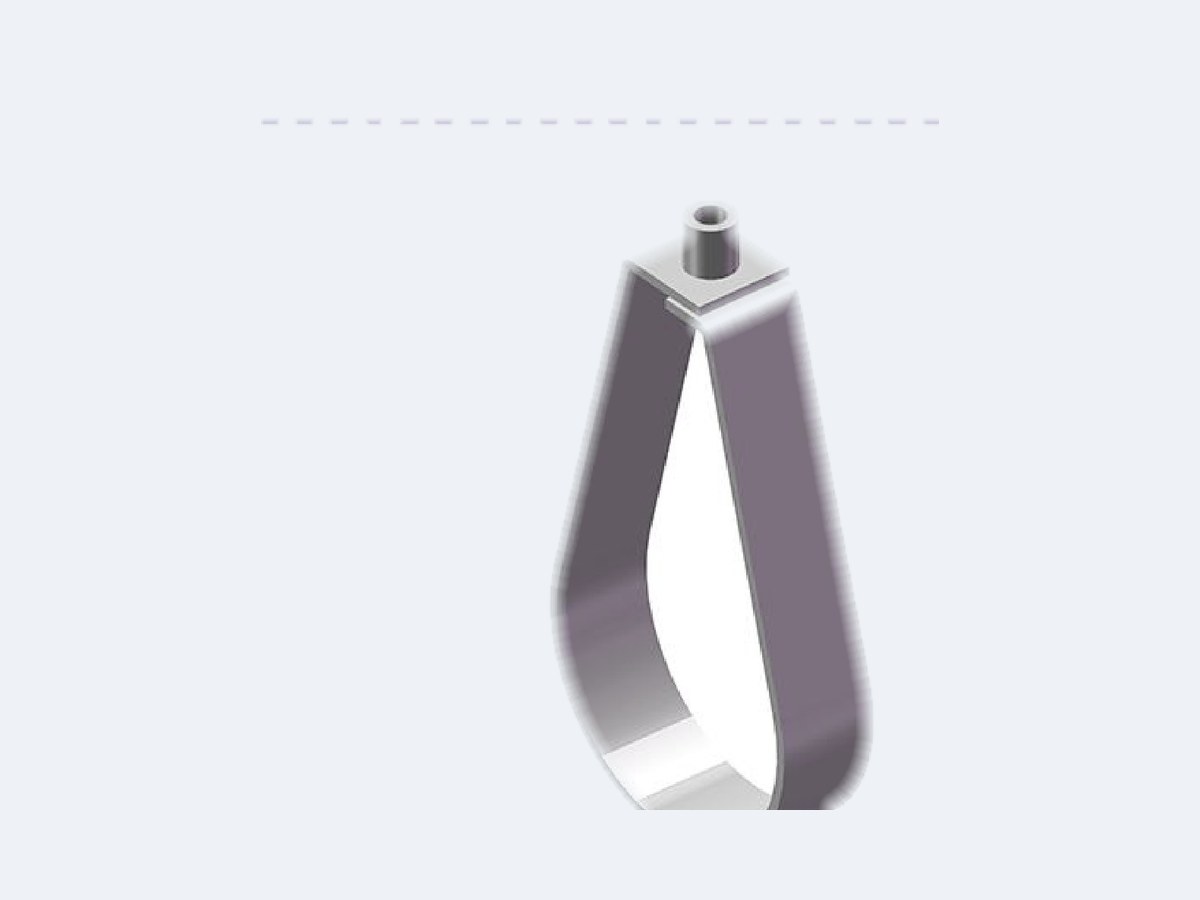

Pear Hanger ClampRod-suspended pipe & cable support

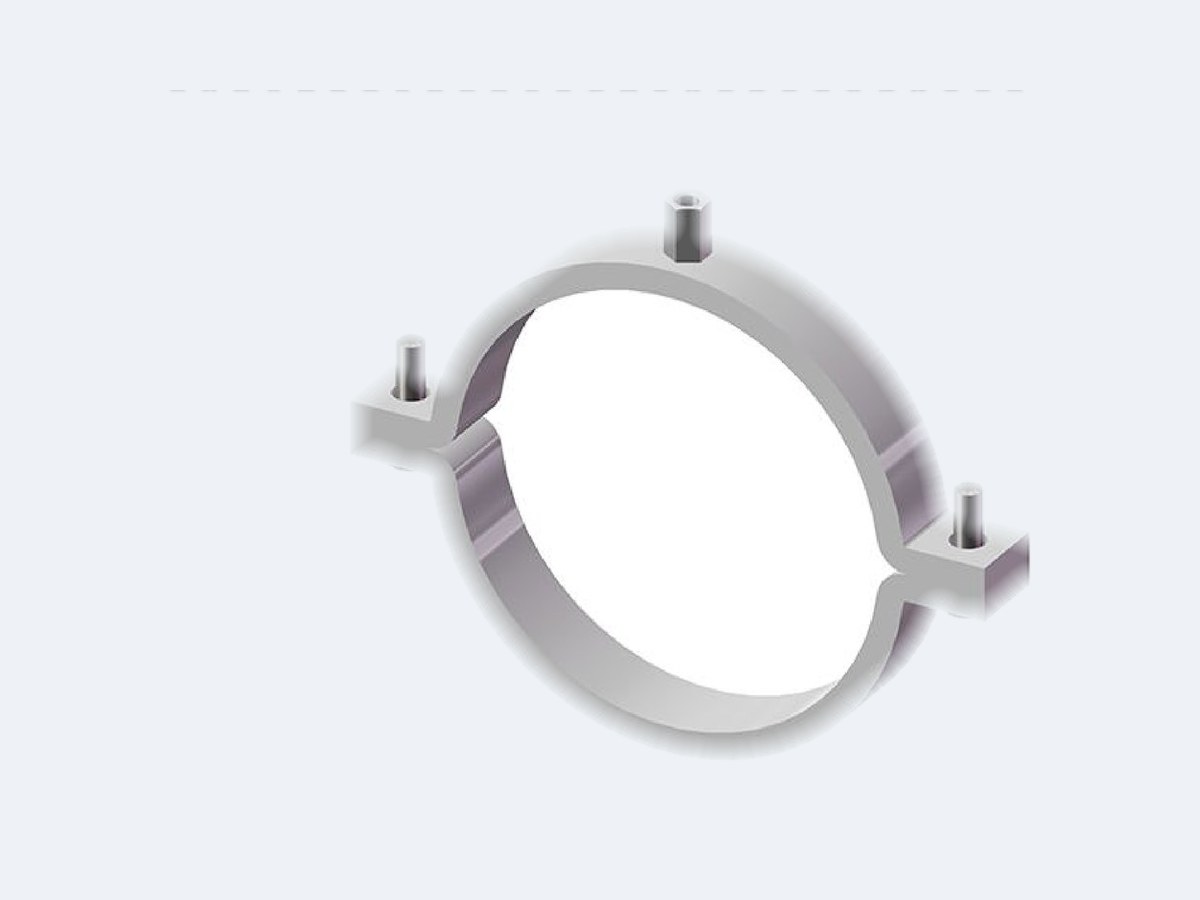

Insulated Pipe ClampØ 12–169 mm, EPDM lined

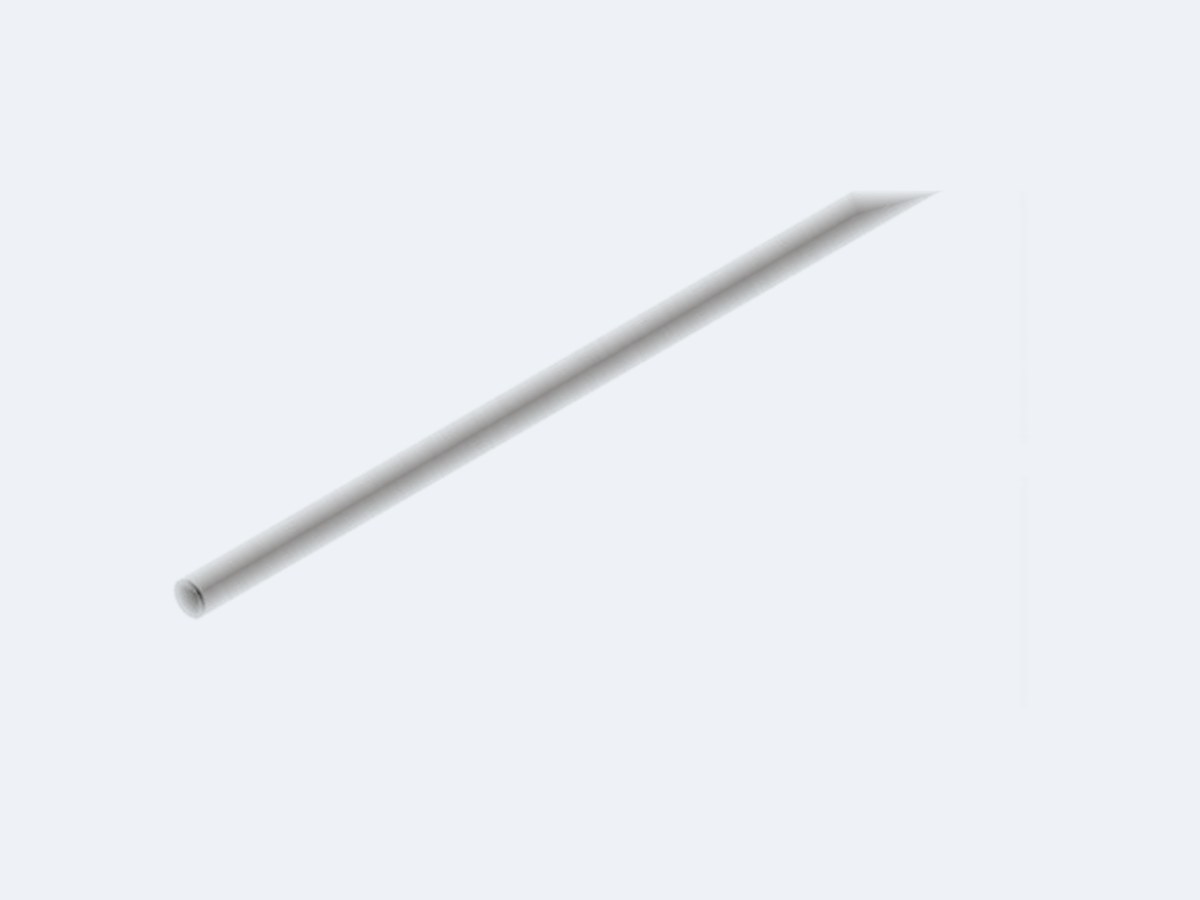

Threaded Rod & Rod CouplerM6–M12 · 1/4"–1/2"

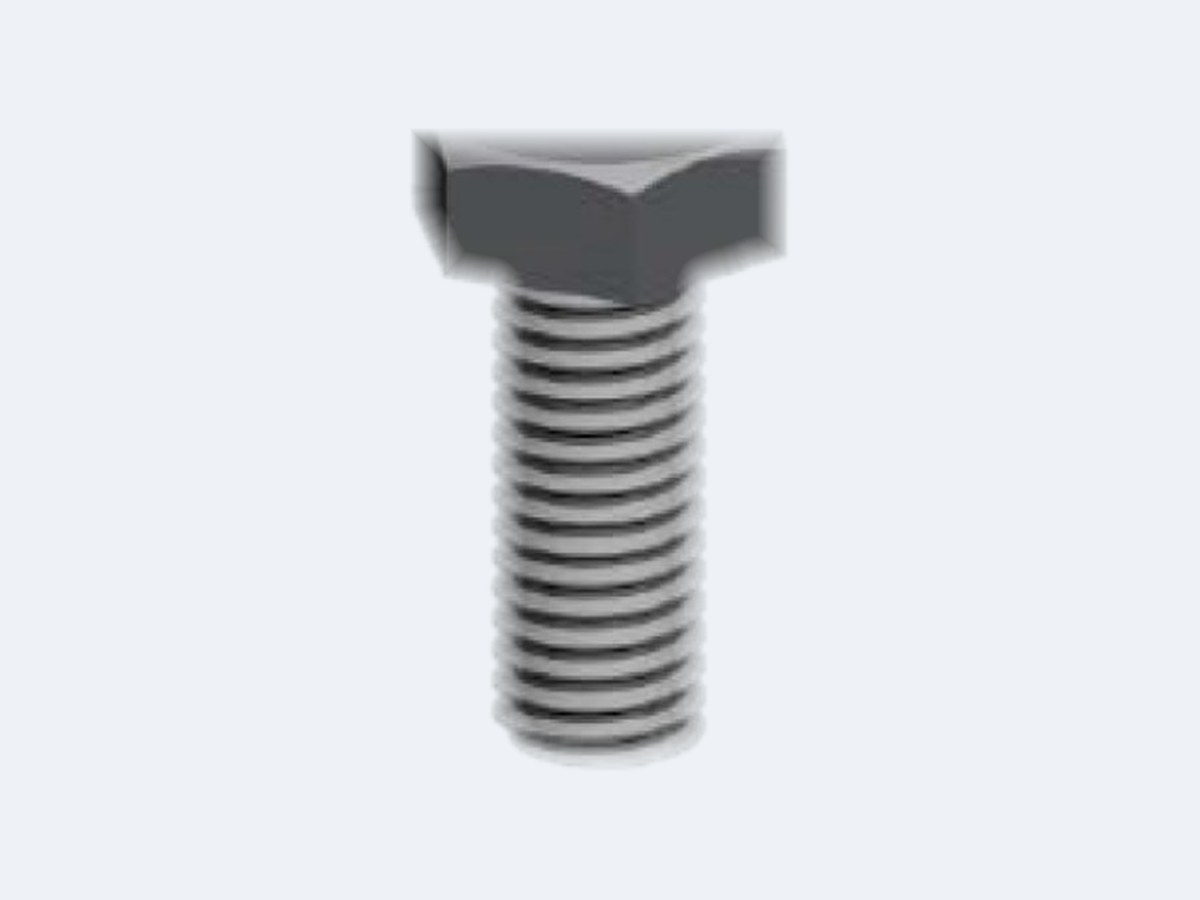

Hex Screws, Nuts & WashersM6–M12 full fastener set

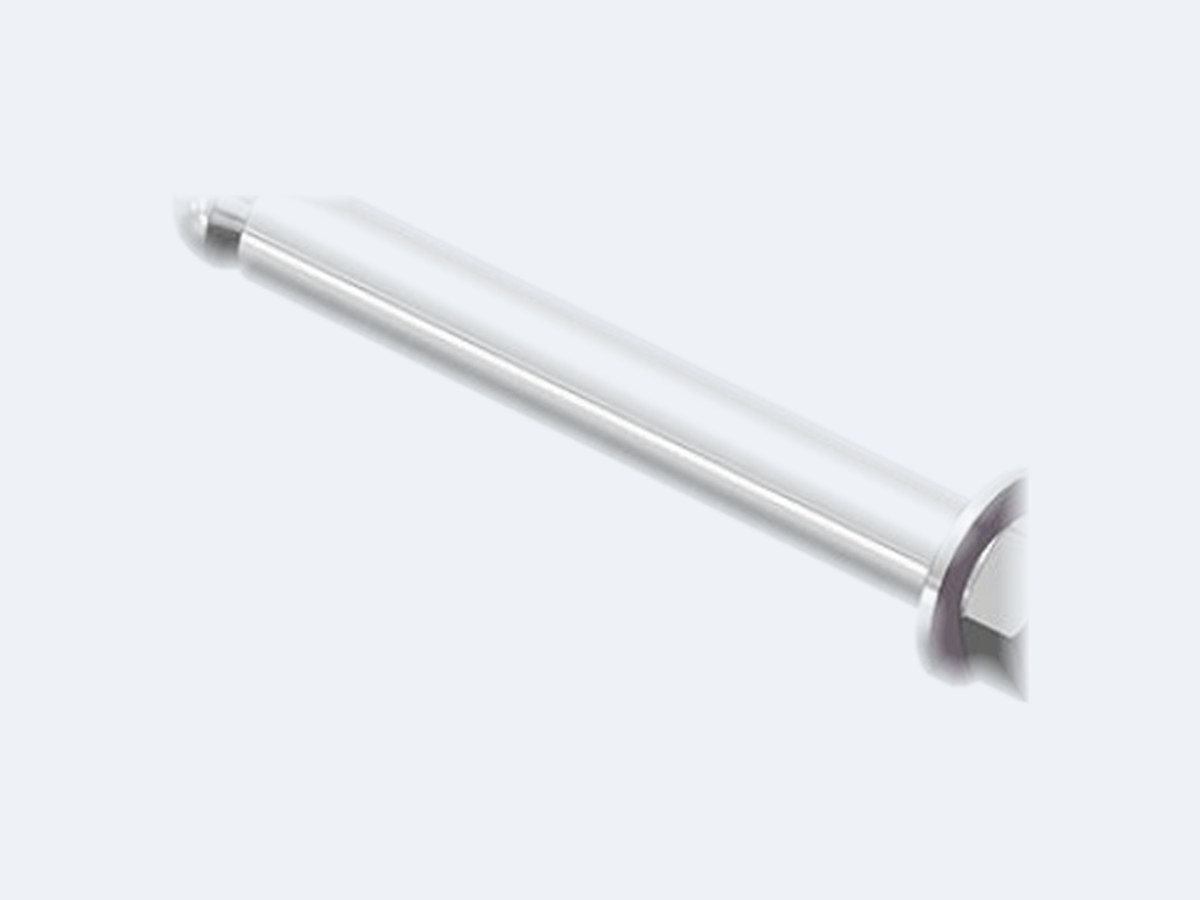

Drop-In & Stud AnchorsM6×25 – M12×120

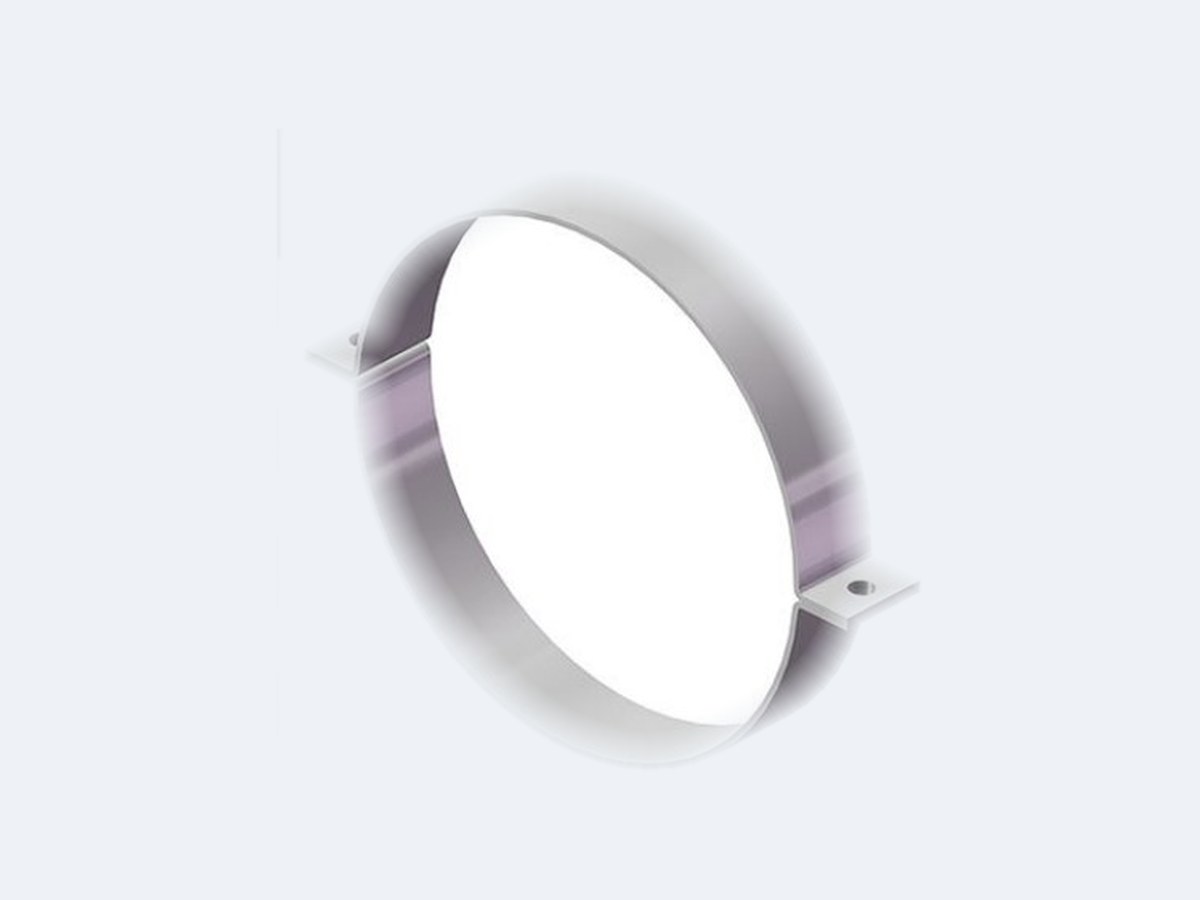

Anti-Seismic Pipe HangerØ 74–277 mm seismic bracing

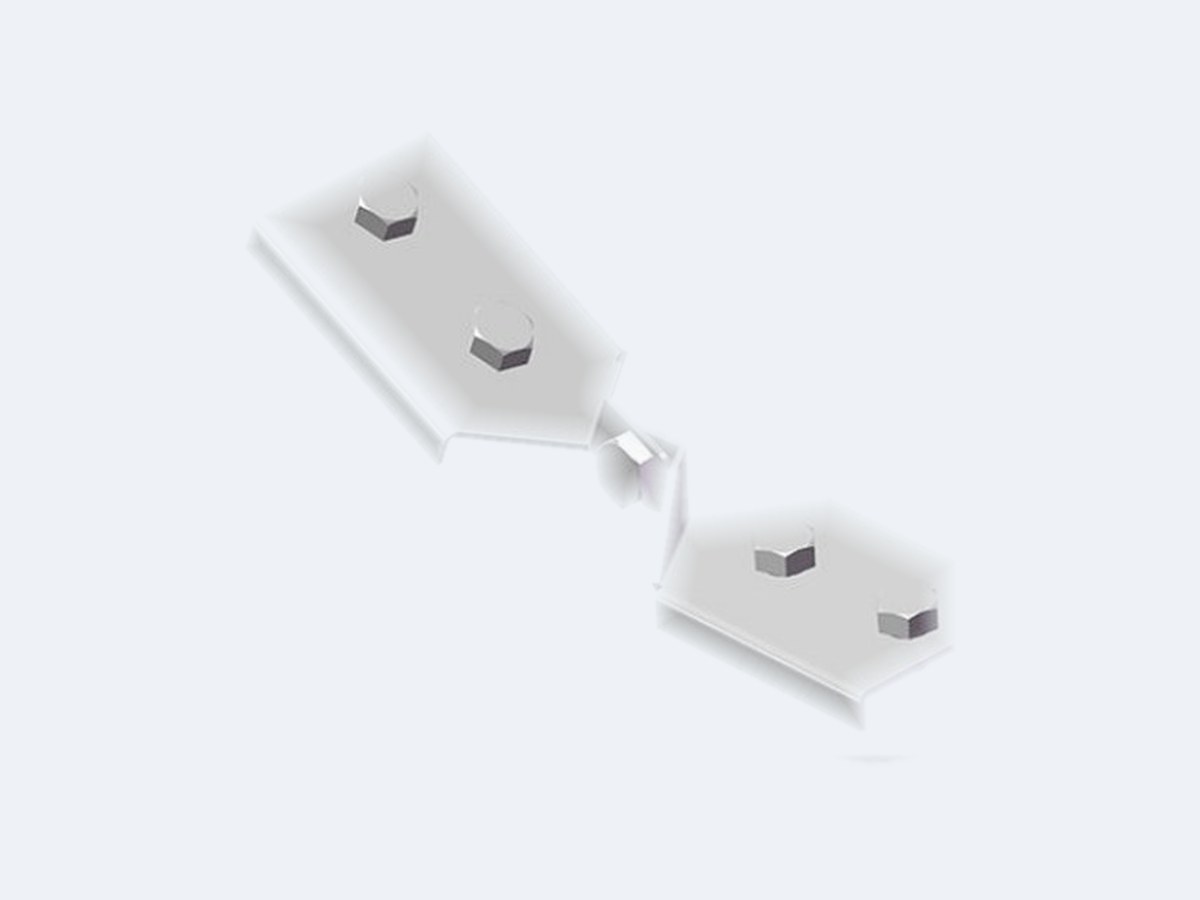

BKZ Mounting BracketsBKZ-B3 / BKZM10 / BKZM12

Need a size, finish or fitting not listed? Send us your drawing → Custom production is our specialty.
